SkyWave

High-intensity, large-area LED flood curing system

Expand AllCollapse
SkyWave Product Summary

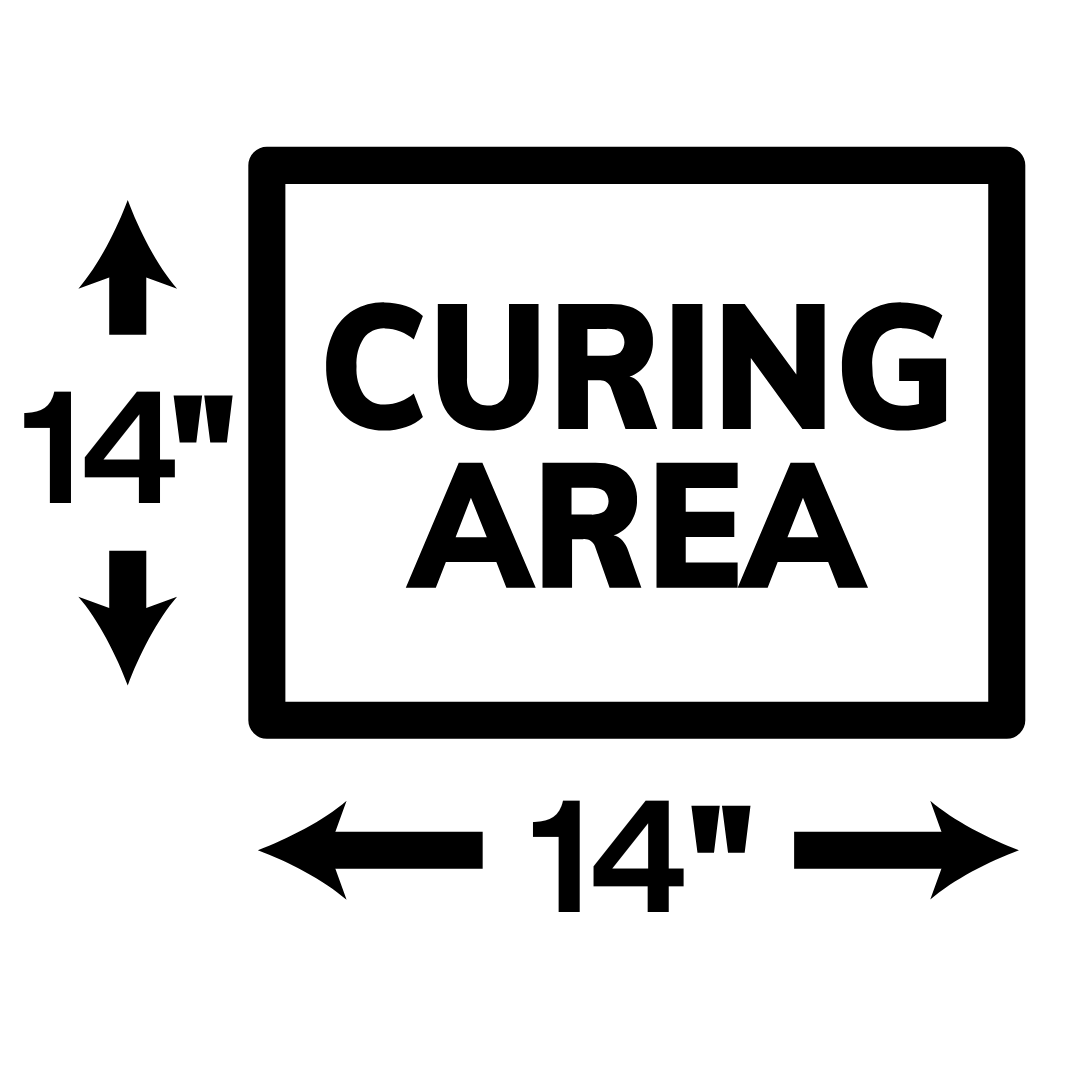

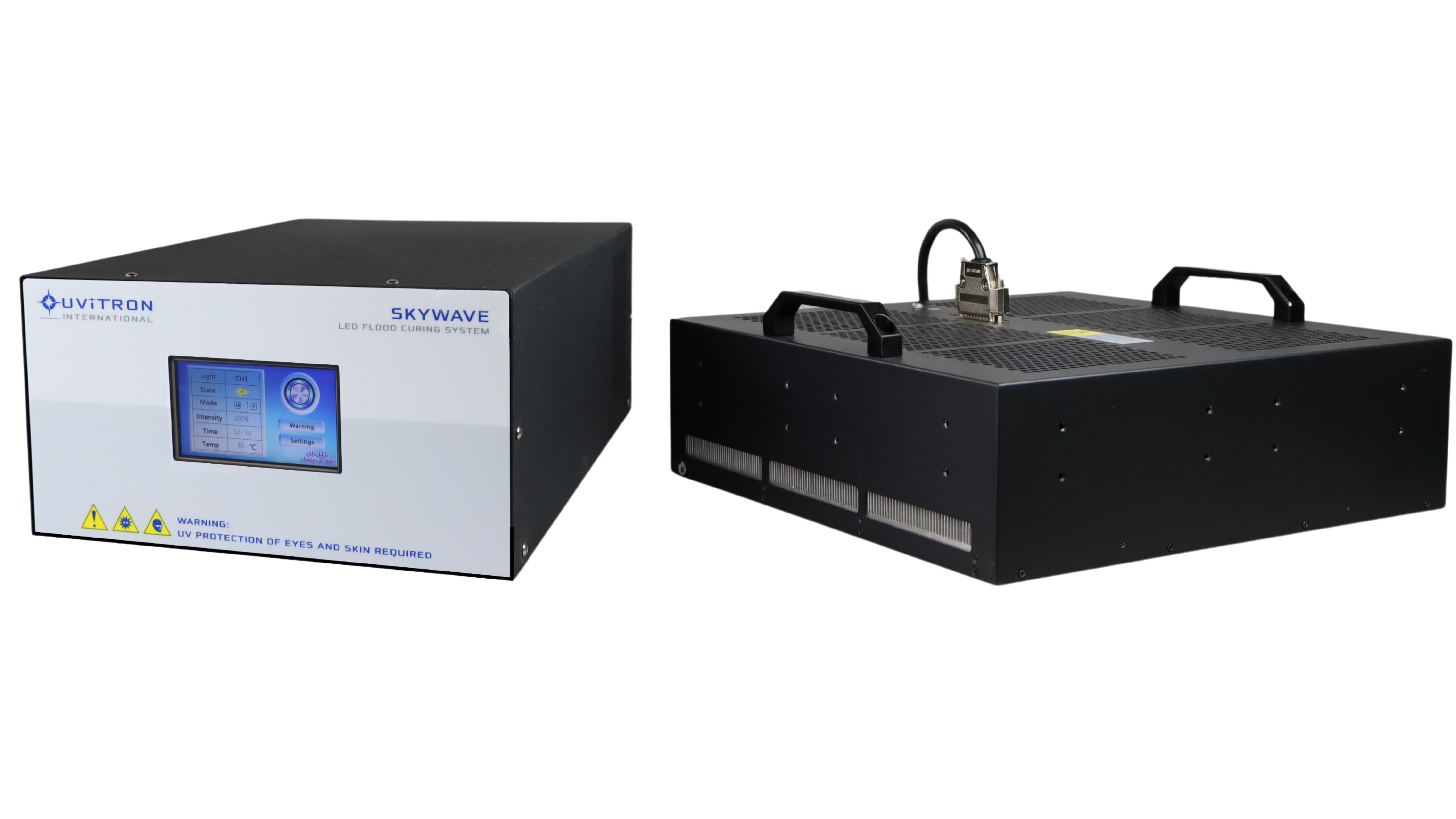

The SkyWave UV LED Curing System is equipped with a high-powered UV LED lamp that delivers cool, high-intensity light that is evenly distributed across a 14 x 14″ curing area. The system features a robust touch screen interface that simplifies operation and provides access to a variety of settings including power control monitoring and system alarms. Housed in a black metal casing, the system is designed for durability and ease of use in industrial settings. It includes advanced cooling mechanisms to maintain optimal temperatures and stability during operation. Additionally, the SkyWave offers comprehensive error warnings and lock settings to ensure secure and reliable performance for various industrial applications.

Additional Details

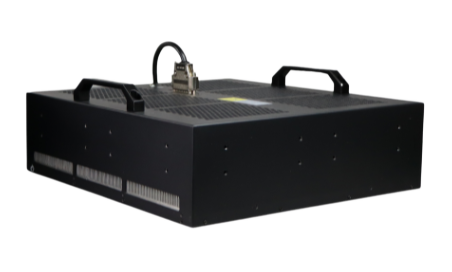

High-Powered UV LED Lamp: The SkyWave features a UV LED lamp that delivers potent irradiation intensity. This high-performance lamp is designed for effective and rapid curing, ideal for a variety of industrial applications.

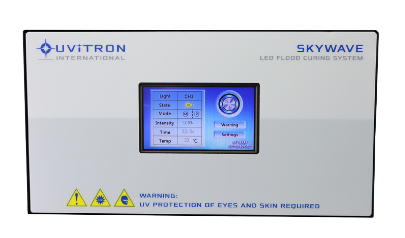

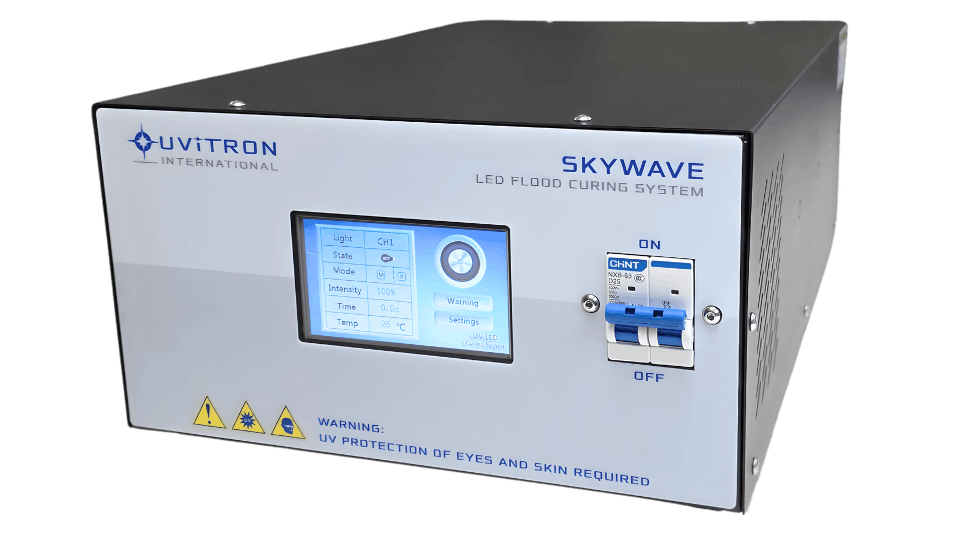

Touch Screen Interface: The system includes an advanced touch screen interface that simplifies the management of operational settings. This user-friendly interface allows operators to easily adjust settings, monitor performance, and troubleshoot with ease.

Advanced Cooling System: The SkyWave boasts an advanced cooling system designed to maintain all components at optimal temperatures, significantly extending the lifespan of the unit and enhancing its performance reliability.

Comprehensive Error Warnings and Security Features: These include overheat warnings, LED fault alerts, and built-in password protection, which help in maintaining operational integrity and preventing unauthorized access or accidental mishandling of the equipment.

Durable and Functional Design: Built to withstand the rigors of industrial environments, the SkyWave curing system features a durable black metal casing that not only protects the internal components but also complements its functional design.

Dimensions & Specifications
Specifications
System TypeLED Flood Curing System
Part No.UV5330
Input Voltage100-240V AC, 50-60Hz Range
Curing Area13.78' x 13.78'
Weight33.07 lbs (Controller & Lamp)
Controller Size (L x W x H)17.7' x 11.8' x 6.3'
Lamp Size (L x W x H)15.8' x 15.8' x 4.7'
System Part Numbers
System Part Numbers
Part No.Wavelength [nm]Details
UV5330-365365SkyWave with 365 nm UV LEDs, Includes UV/IR protective glasses, power cord and manual
*UV5330-385385SkyWave with 385 nm UV LEDs, Includes UV/IR protective glasses, power cord and manual
*UV5330-395395SkyWave with 395 nm UV LEDs, Includes UV/IR protective glasses, power cord and manual
UV5330-405405SkyWave with 405 nm UV LEDs, Includes UV/IR protective glasses, power cord and manual
*special order only
SkyWave Accessories
Part No. ItemDetails

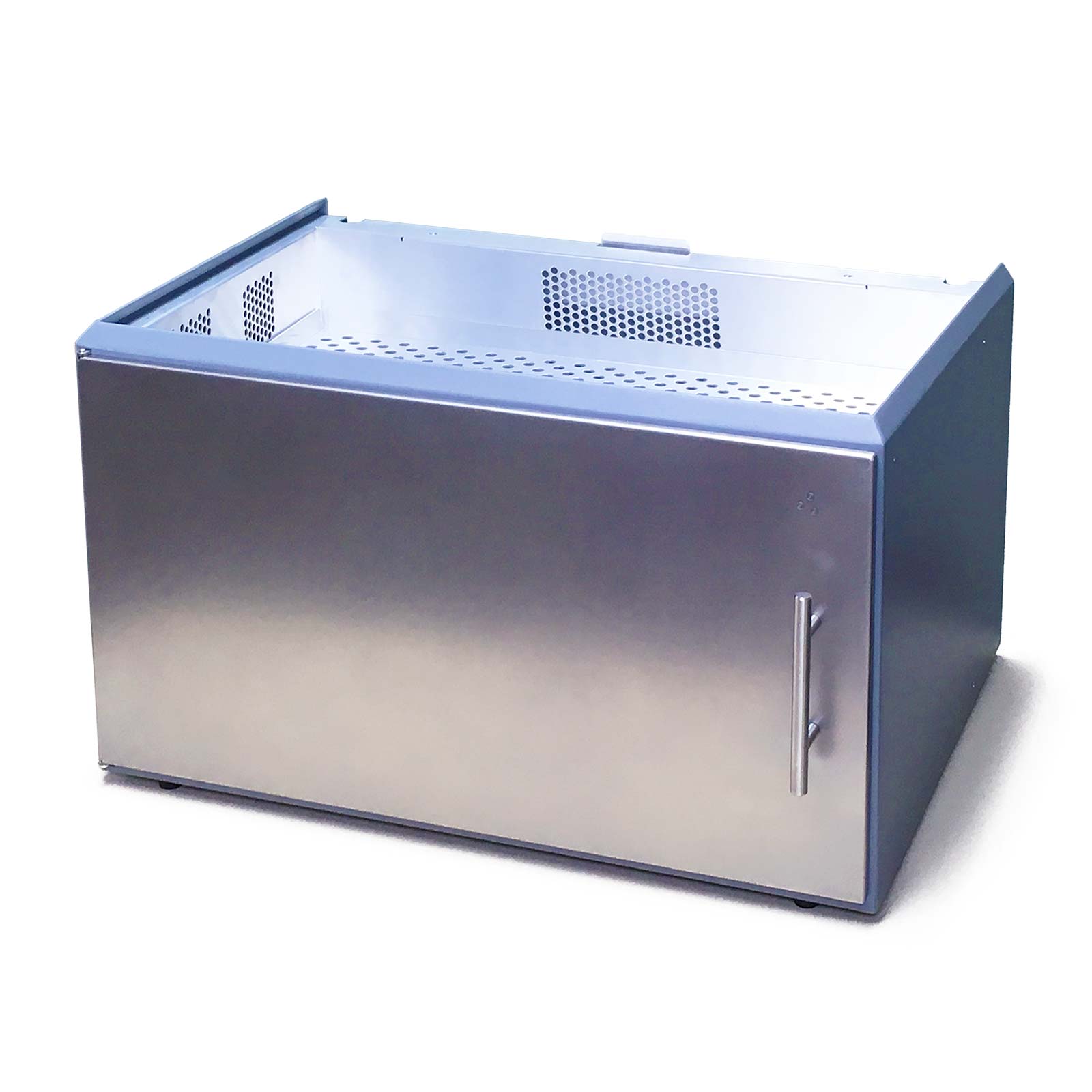

UV2875-HRayven Quad Shielding Curing ChamberProvides full shielding and shutter door interlock
UV5309Mounting Bracket KitUsed to mount SkyWave UV LED Curing System
UV4704USB to RS232 Adapter/ConverterConnect to PC or PLC for Remote Control
MultiplePower CordsMultiple types available
MultipleUV Curing TrayStainless steel non-stick surface
UV4006LEDCure RadiometerDynamic range 0.4-40W/cm2. Available in L365, L385, L395 or 405.
UV2231UV/IR Protective Safety GlassesSport contour, 3.0 shade
UV0495UV/IR Protective Safety GlassesOTG (fit over prescription eyewear), 3.0 shade
UV1889UV Protective Face ShieldLife-up face shield ideal for maximum Uv/light protection, 3.0 shade

Payment Information

Purchase Orders

To open a new customer account with us, please send the following information regarding your company:

  • Company name
  • Company contact
  • “Bill To” address
  • Telephone and fax numbers
  • Three trade references

Please be sure to include the following information on your purchase requests to ensure quick and accurate processing and shipment of your order:

  • Complete “Ship To” address, including postal code where applicable
  • Required shipping method

Unless otherwise specified, all shipments will be sent via UPS.

New Customer Form | Credit Application



Fax & Email Orders

To place an order, send your signed purchase order and company information (see above) to the attention of our Sales Department by fax at 413.731.7767 or by email to orders@uvitron.com.



Phone Orders (U.S. Customers Only)

We are happy to process your product orders by phone at 413.731.7835. We accept MasterCard, Visa, Discover and American Express for phone order payments (see Credit Card Order information).



Credit Card Orders

credit-cards

In order for us to accurately and safely process your credit card orders, we request that you supply us with complete account, cardholder and shipping information. Please complete the following form and send it to us via email or fax, or be prepared to supply the information over the phone to one of our customer service representatives.

Credit Card Order Form



International Orders

We have extensive experience processing and fulfilling international as well as domestic orders. We have successfully shipped products to destinations around the globe.

To contact us from outside the United States, call 00.1.413.579.6406 or send us an email message at sales@uvitron.com

For first-time international orders, prepayment is required. Payments may be made by certified bank check or direct wiring of funds (this information must be provided at time of order).



Financing

We offer financing through CrestCapital. Learn more about financing the purchase of equipment by clicking here for instant payment quotes and/or to apply online.



Shopping Online

uvitron shopping

To order UV curing accessories online, visit our online store. We offer a variety of lamps, radiometers, light guides and other accessories for our flood and spot curing systems.



Return Policy

All product returns must be first authorized by our Customer Service department. A Uvitron service representative will issue a Return Material Authorization Number, which must be printed clearly on the top of the shipping carton and on the accompanying packing slip. Any unauthorized returns will be refused by our Receiving Department, so please call us first.

Returned products or demonstration units must be received in new condition, with no damage, dents, scratches or adhesive stains. Products should also be sent in the original packaging and shipping cartons to ensure proper protection during return transit. Some items may be subject to restocking fees. Account credits or refunds will be issued after returned equipment is received and inspected. Unfortunately, we cannot accept custom or non-stocked items returned for credit or refund.

To speak with a customer service representative, call 413.579.6406 or email customer_service@uvitron.com.

SkyWave

Request Quote for SkyWave

Request a quote for the version of the SkyWave UV LED flood curing system that best fits your needs.

Below you can choose from the different available models, components and accessories for this system. You can select each item one at a time or begin with the Default Configuration as a basis, and build from there.

If you have any questions contact us directly.

Quote Default Configuration
Remove System from Quote
UV5330-365 - SkyWaveSystem-1,SkyWaveLED-1,Shielding-1
UV5330-365 - SkyWaveSystem-1,SkyWaveLED-1,Shielding-2
UV5330-385 - SkyWaveSystem-1,SkyWaveLED-2,Shielding-1
UV5330-385 - SkyWaveSystem-1,SkyWaveLED-2,Shielding-2
UV5330-395 - SkyWaveSystem-1,SkyWaveLED-3,Shielding-1
UV5330-395 - SkyWaveSystem-1,SkyWaveLED-3,Shielding-2
UV5330-405 - SkyWaveSystem-1,SkyWaveLED-4,Shielding-1
UV5330-405 - SkyWaveSystem-1,SkyWaveLED-4,Shielding-2
-
-
-

System Type and Included Items

The default SkyWave configuration comes with

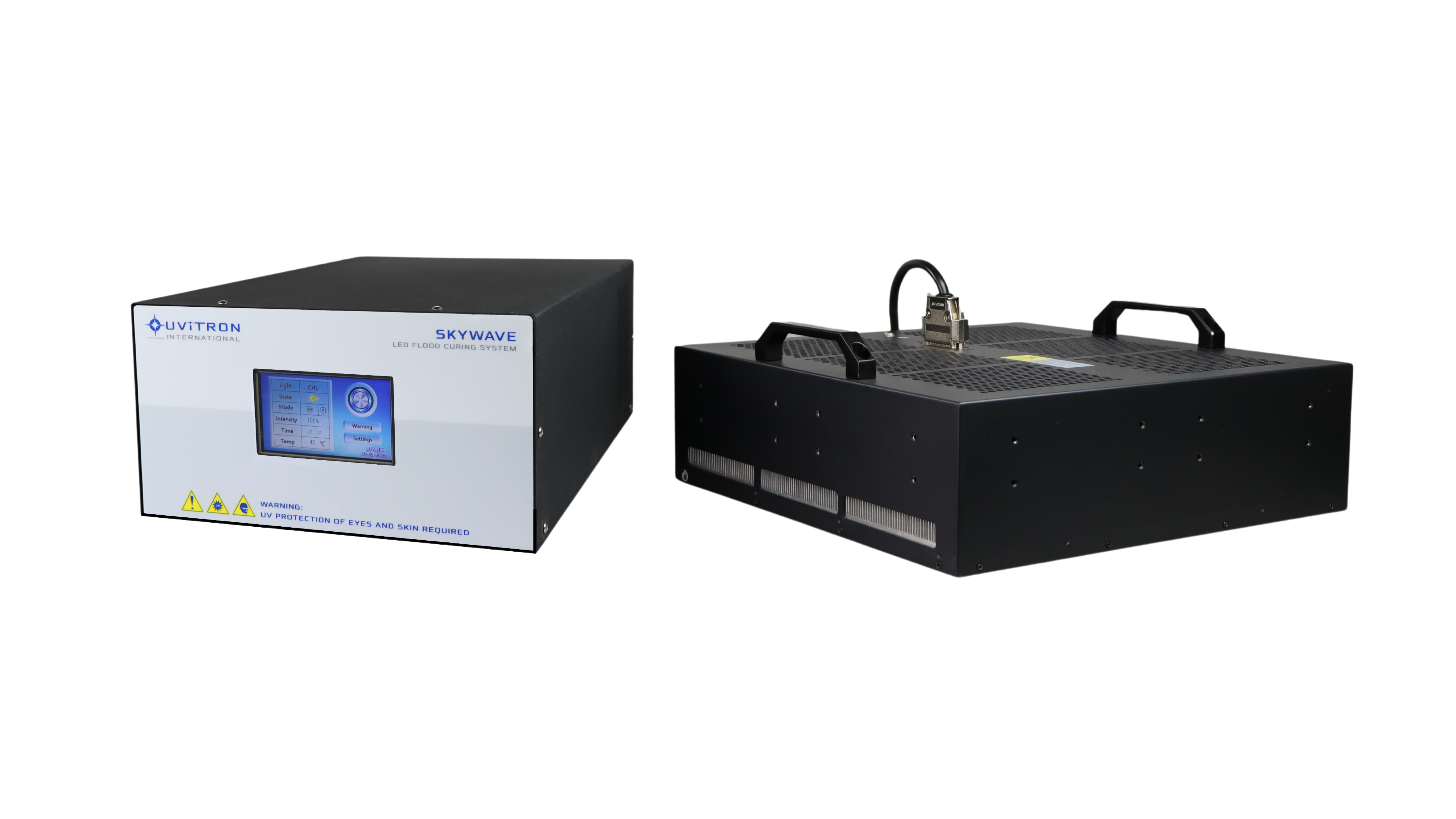

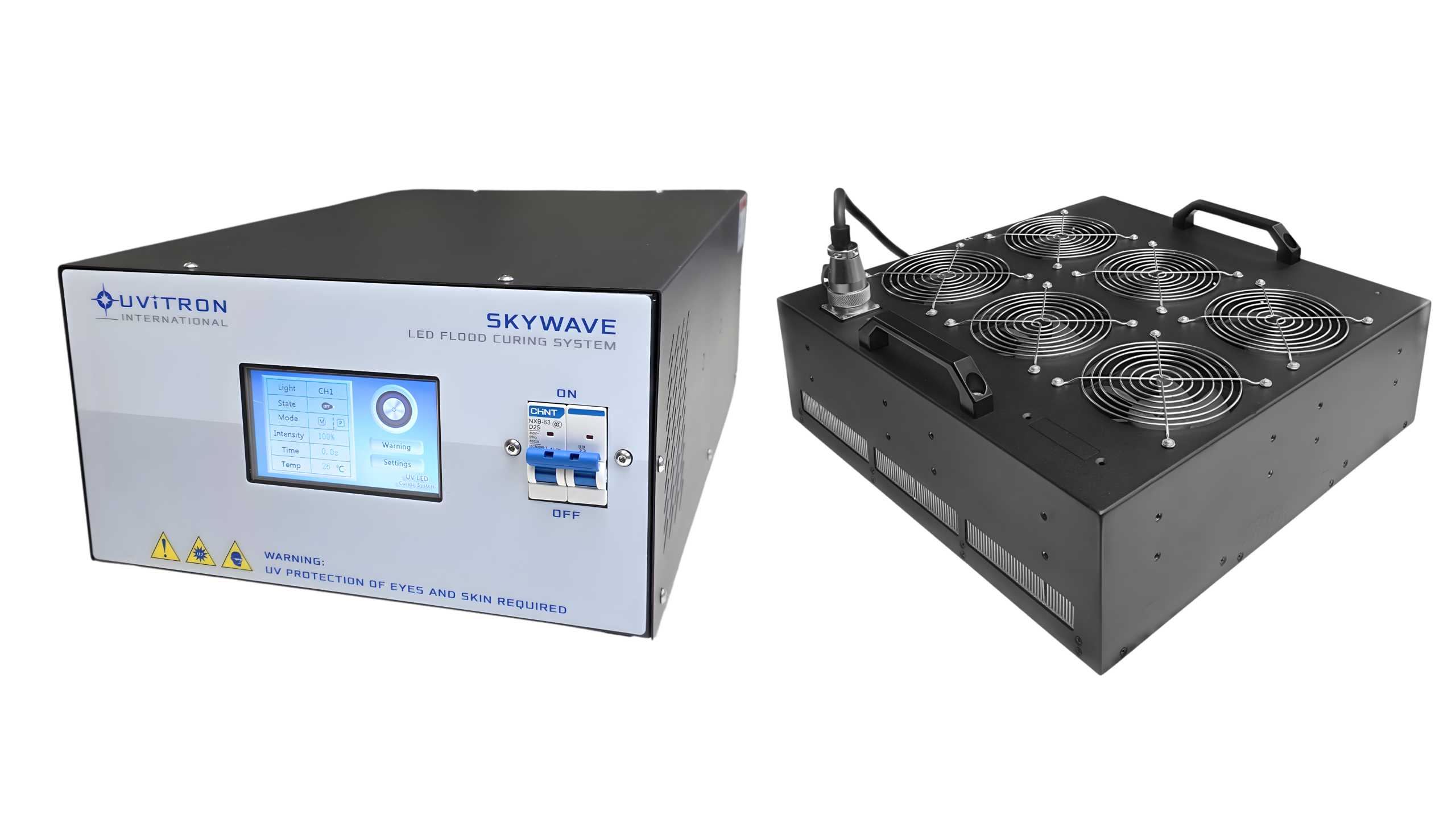

SkyWave UV LED Base System (UV5330-CT)

High-intensity cool-operation LED flood light curing system. Includes LED lamp & controller as pictured. Available with 365nm, 385nm, 395nm and 405nm LED options. The SkyWave system includes UV/IR protective OTG glasses (3.0 shade with case), AC power cord (USA standard) and instruction manual.

Choose LED Type

The SkyWave is available with 365nm, 385nm, 395nm and 405nm LED options to ensure compatibility with adhesives and coatings from all manufacturers.

365nm LED (UV5330-365-LH)

365nm UV LED curing system

385nm LED (UV5330-385-LH)

385nm UV LED curing system

395nm LED (UV5330-395-LH)

395nm UV LED curing system

405nm LED (UV5330-405-LH)

405nm UV LED curing system

Choose Mounting & Shielding Option

The default configuration comes with an adjustable height shelf, a male to female 15 position DSUB lamp interconnect cable, mounting bracket kit, and a Rayven Quad Instruction Sheet.

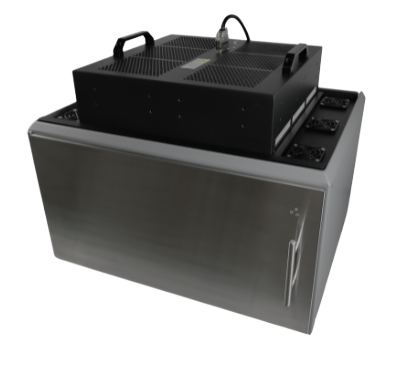

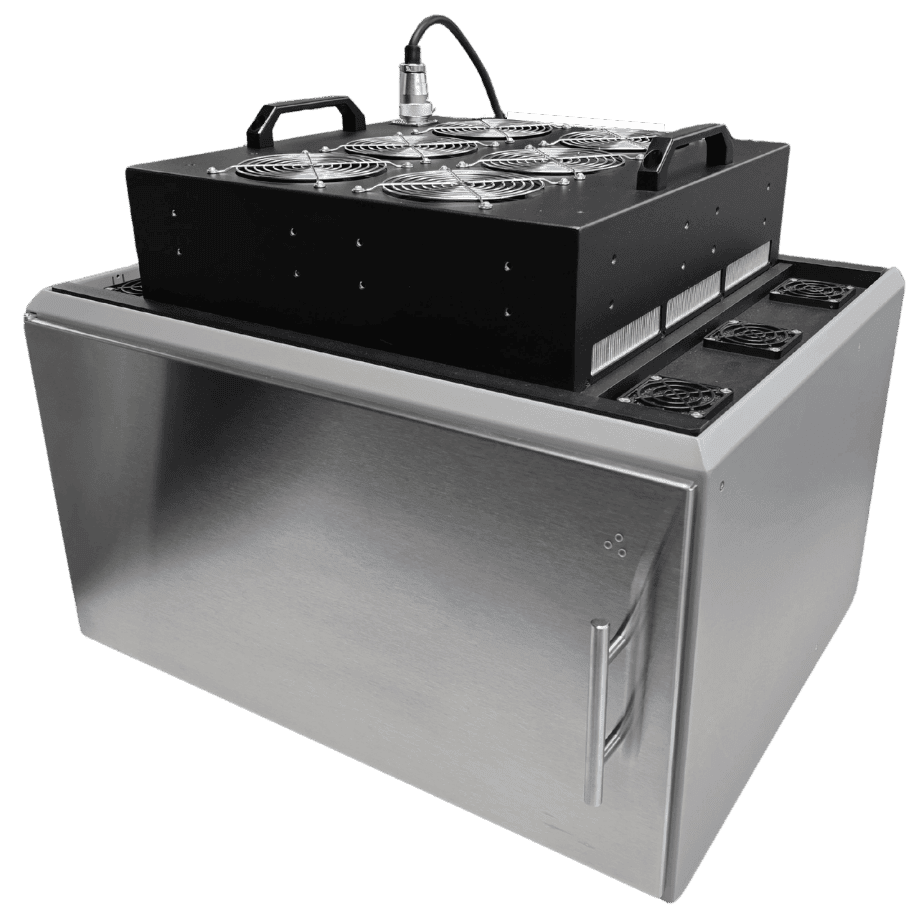

Rayven Quad (UV2875-H) & Rayven Mounting Bracket Kit (UV5309)

UV shielded curing chamber for SkyWave LED flood system with mounting bracket kit included.

No Mounting or Shielding Options

This option removes the Rayven Quad chamber & mounting bracket kit.

Accessories

Click any of the accessories below that you would like included in your quote. To view or price more accessories or replacement parts, visit our online store.

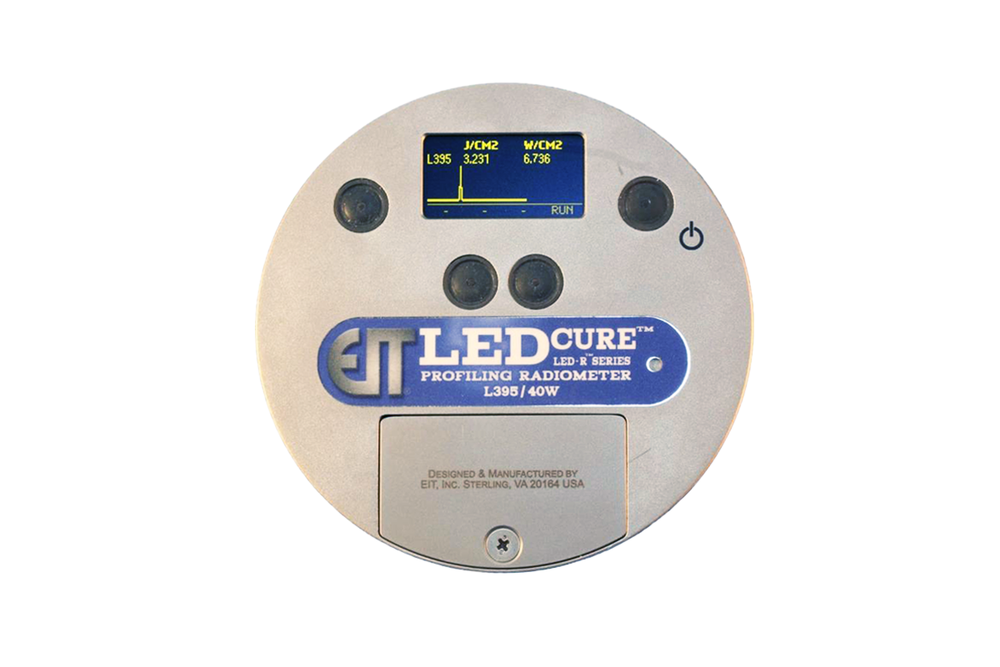

LEDCure Radiometer - UV4006

Easy to use format, provides irradiance (W/cm²) and energy density (J/cm²) values on the display as well as the irradiance profile. Display can be set to Graph or Reference Mode.

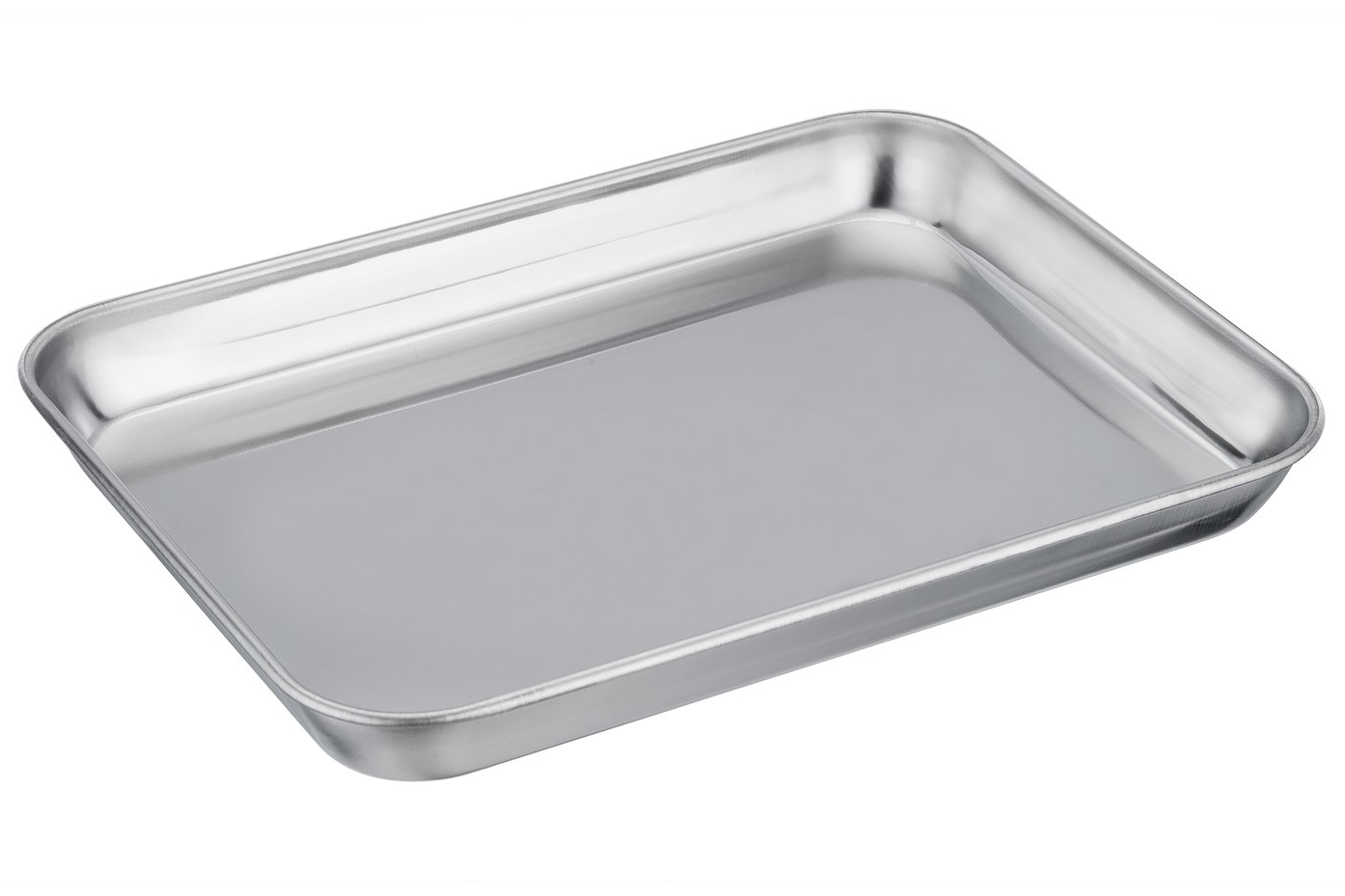

Stainless Steel Curing Tray - UV4269

Versatile stainless steel UV curing tray used with Rayven Quad chamber for custom curing applications. Dimensions: 16" x 12" x 1"
