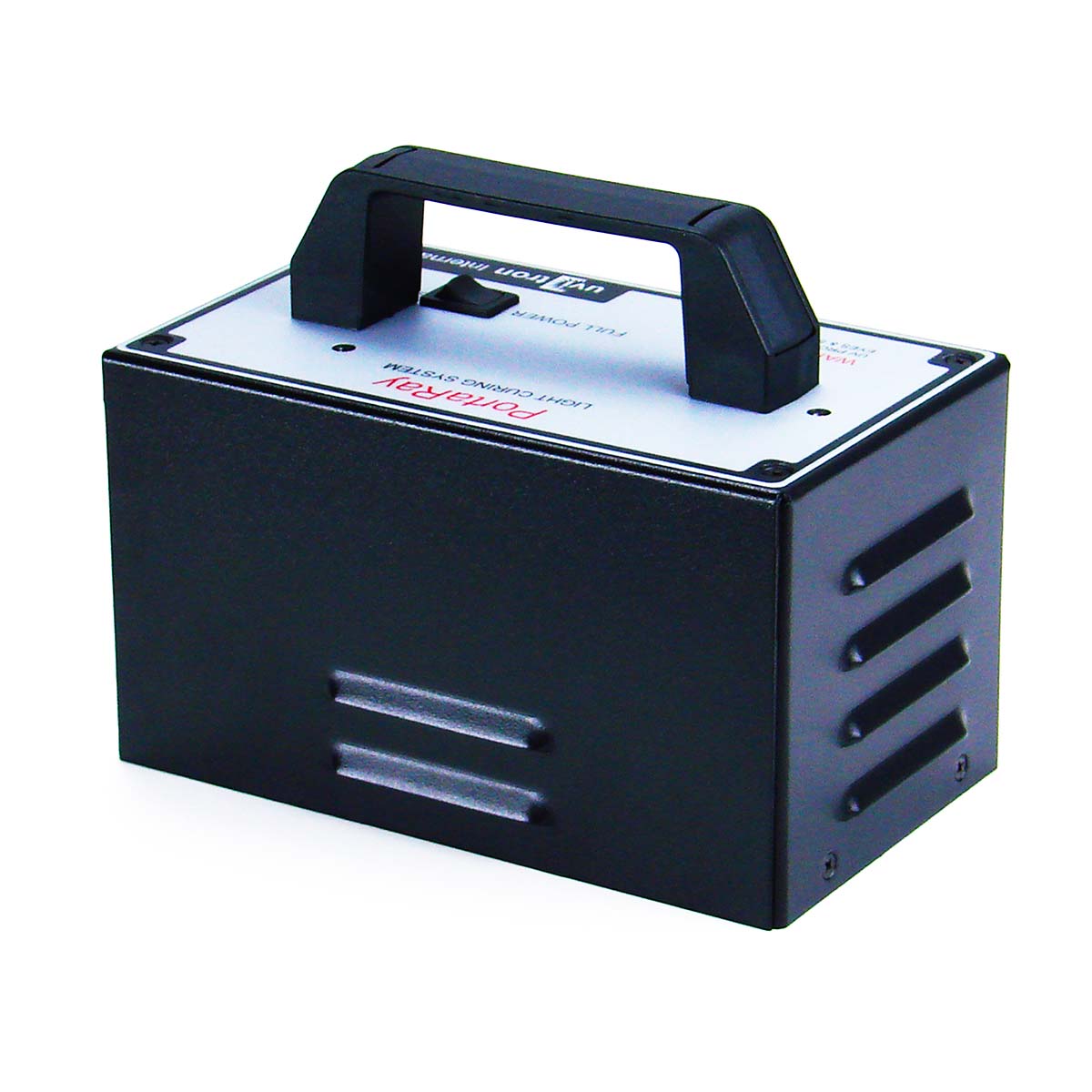

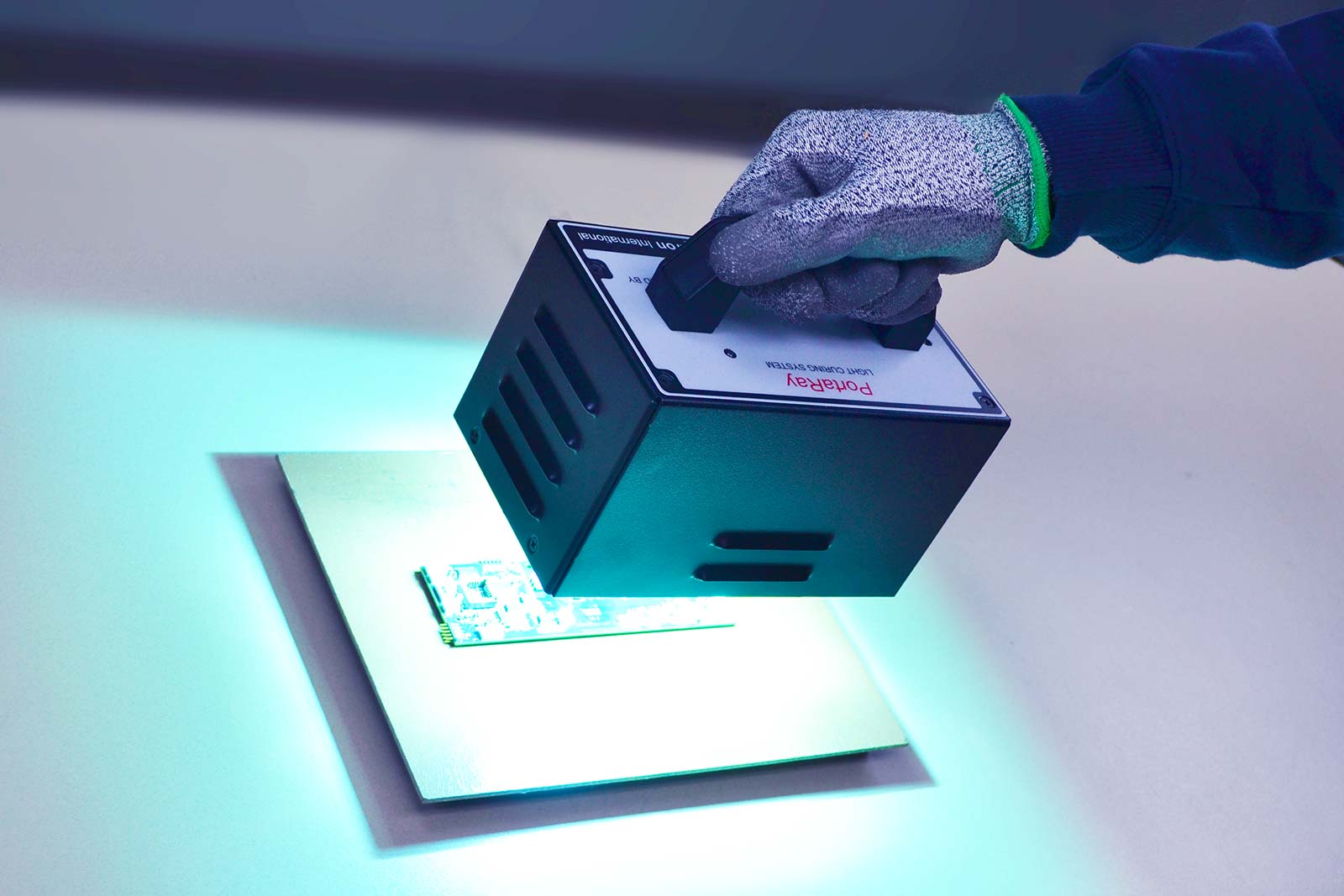

A portable, lightweight, versatile UV curing system, the PortaRay can handle a variety of UV and visible light curing applications. With an effective curing area of up to 5 x 5″, it is ideal for curing small parts. Weighing in at a mere 3 lbs., the system is also perfect for applications where frequent transportation is involved.
Included with the system is an enclosed headrest for holding the lamp head and providing light-shielding during idle periods. An optional latched bottom accessories box is also available for storage and transportation of the headrest, UV glasses, power cord and adhesives. The lamp head can be used for handheld curing operations, or it can be mounted to a stand, conveyor, machine, fixture or robot. Due to its simple yet high-tech design, the PortaRay is extremely user-friendly and reliable, requiring virtually no learning curve or setup time.
Fully integrated lamp head: The hand-held lamp head is fully self-contained and includes an extra long-life 400W or 600W arc lamp, which emits evenly distributed UVA, UVB or visible light. The unit’s arc lamp is powered by the state-of-the-art UV Power-Plus Lamp Driver. The typical lamp life is 2,000 hours. The lamp reflector is available as a parabolic 5 x 5″ type for uniform, larger area curing, or optionally as a focused (circular) 5 x 3″ type for higher intensity curing of smaller areas.
Lamp power regulation: The system’s switch mode power supply maintains constant lamp power regardless of variations in AC line input or lamp voltages. This regulation provides for repeatable curing times and longer lamp life.

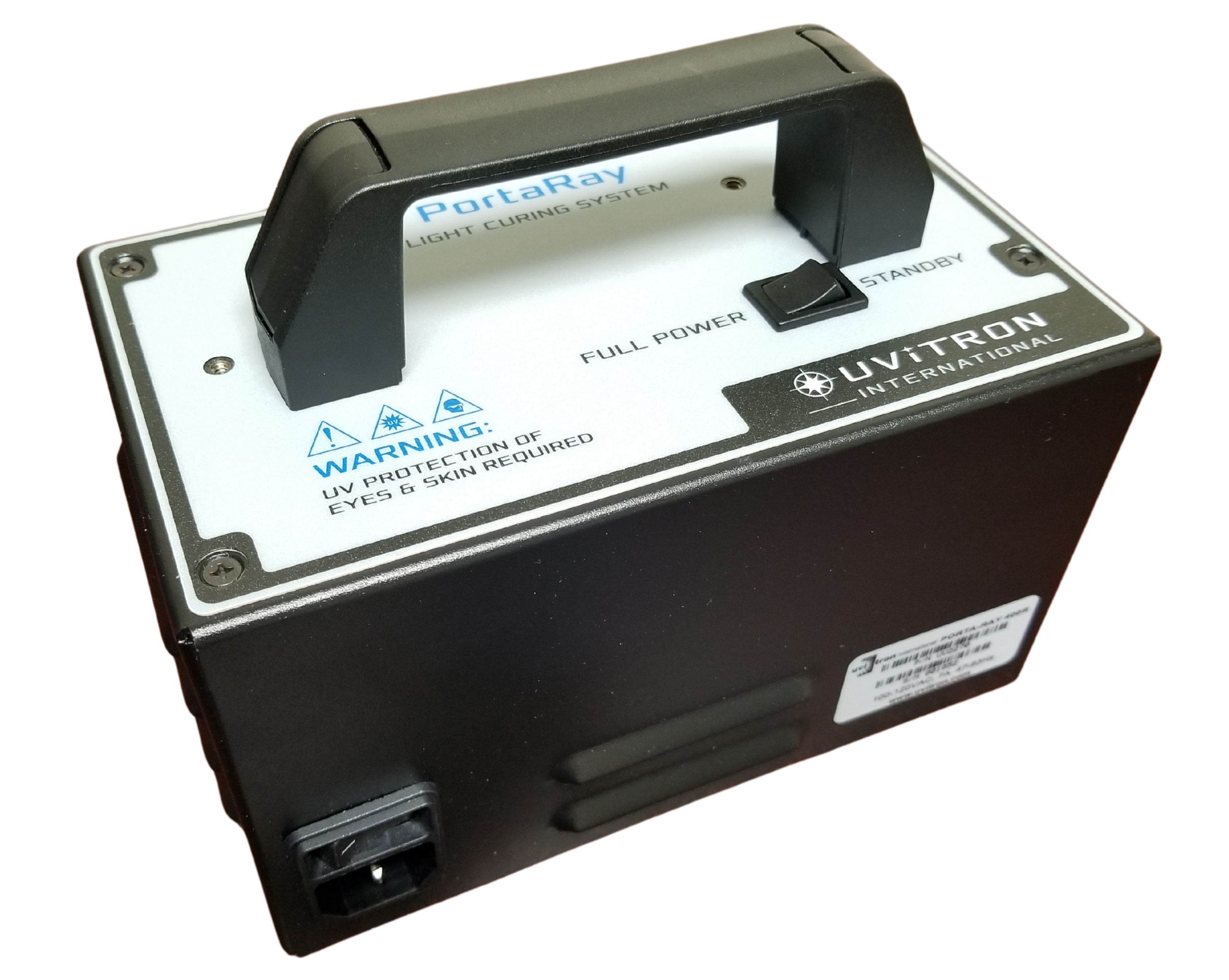

Standby mode: The unit features a standby mode rocker switch, which reduces lamp power by one-half. This mode can be used to reduce heat and stray UV light output while the system is not in use.
Two AC line input versions: The system is available in 90–132VAC and 180–265VAC input voltage ranges that make it compatible for use worldwide.
Forced air cooling: An integrated cooling fan in the lamp head ensures cool operation and high system reliability.
Optional lamp spectrums: The PortaRay is available with UVA, UVB and visible spectrum lamps for the 400W and 600W systems, ensuring compatibility with adhesives and coatings from all manufacturers.
Optional conveyor mounting: The PortaRay can be used with the SunBelt BT9 benchtop conveyor for curing long parts or higher part volumes.
PortaRay with SunBelt BT9 conveyor
| Specifications | ||
|---|---|---|
| System Type: | Portable Flood Curing System | |
| Part #s: | UV2270 | UV2267 |
| Lamp Power: | 400W | 600W |
| Reflector Options: | Parabolic 5 x 5″ (large area curing) | Focused: 5 x 3″ (high intensity curing) |

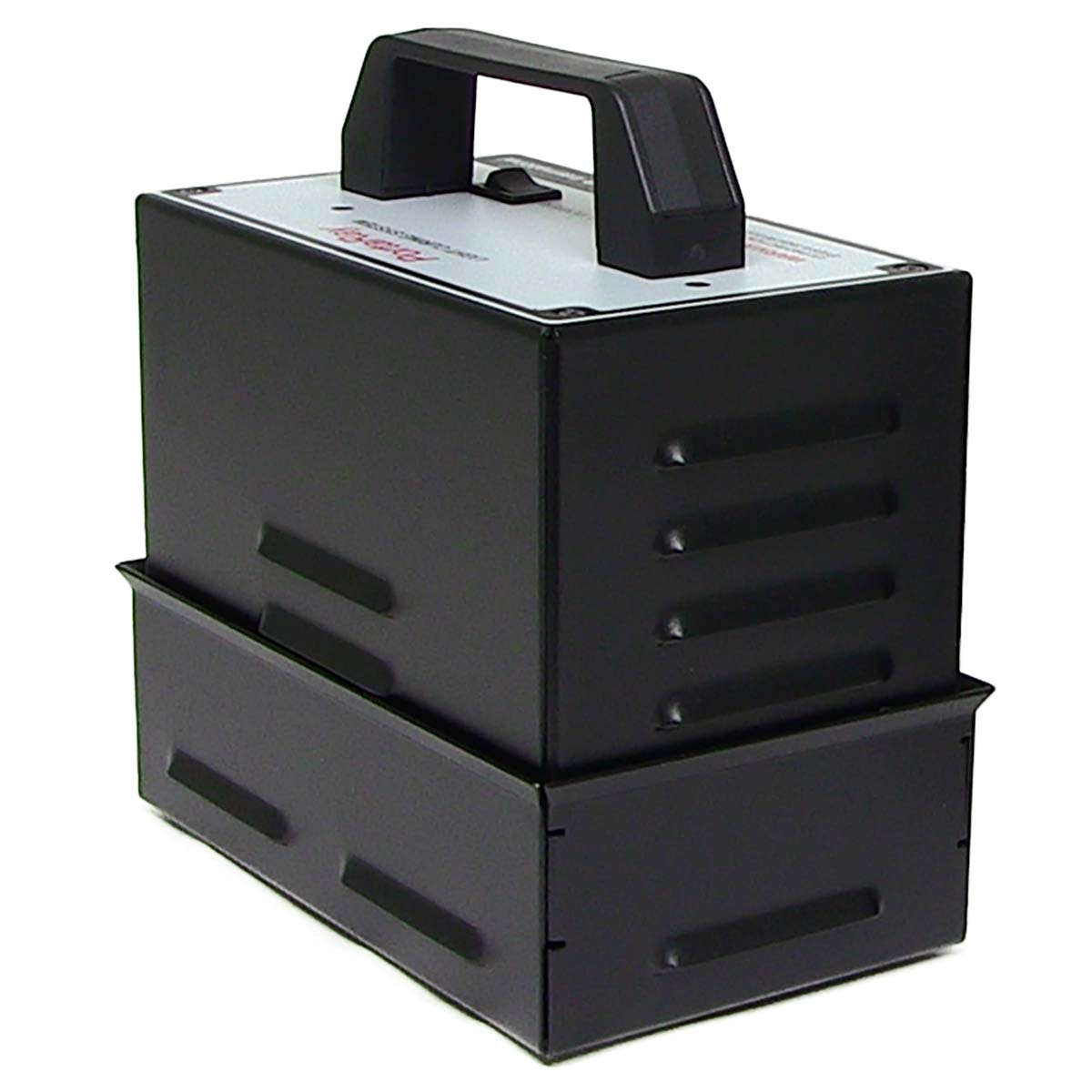

| Accessory Box & Headrest Options: | Headrest lamp head only | Closed headrest |
| Max Chamber Part Size: | 4.25 x 4.25 x 2” | In drawer type headrest |
PortaRay Electrical Specs
| Input Voltage | 100–120 VAC ±10% | 200–240 VAC ±10% |
|---|---|---|
| Max Input Current (400W) | 7A | 3.5A |
| Max Input Current (600W) | 10A | 5A |
| Source Input Frequency: | 47 Hz–63 Hz |
PortaRay Dimensions L x W x H:
| Head Only | with Acc. Box |
|---|---|
| 8 x 5 x 6” | 8 x 5 x 16.5” |
PortaRay Weight
| Head Only | with Acc. Box |
|---|---|
| 3.15 lbs. | 6 lbs. |
The versatile configuration options of the PortaRay extend beyond the UV curing lamp head itself. We offer a variety of specialty configurations* and upgrades to the system to support specific applications.
Benchtop Mounting and Shielding Station: The system can be mounted at a range of heights with a specialized configuration of the benchtop Flood Stand & Shield. Shown is the stand-mounted PortaRay with the optional front wrap-around UV shield and rear UV shield.

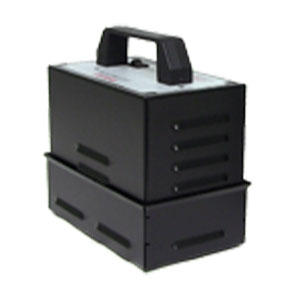

Latching accessories box configuration: The optional accessories storage compartment available with the PortaRay can be latched to the bottom of the lamp housing. This storage box can be used to house curing system accessories such as a headrest, power cord, UV glasses, adhesive, etc.
-
- Lamp head attaches to accessories box
-
- Easy transport
-
- Top-down view of accessories box

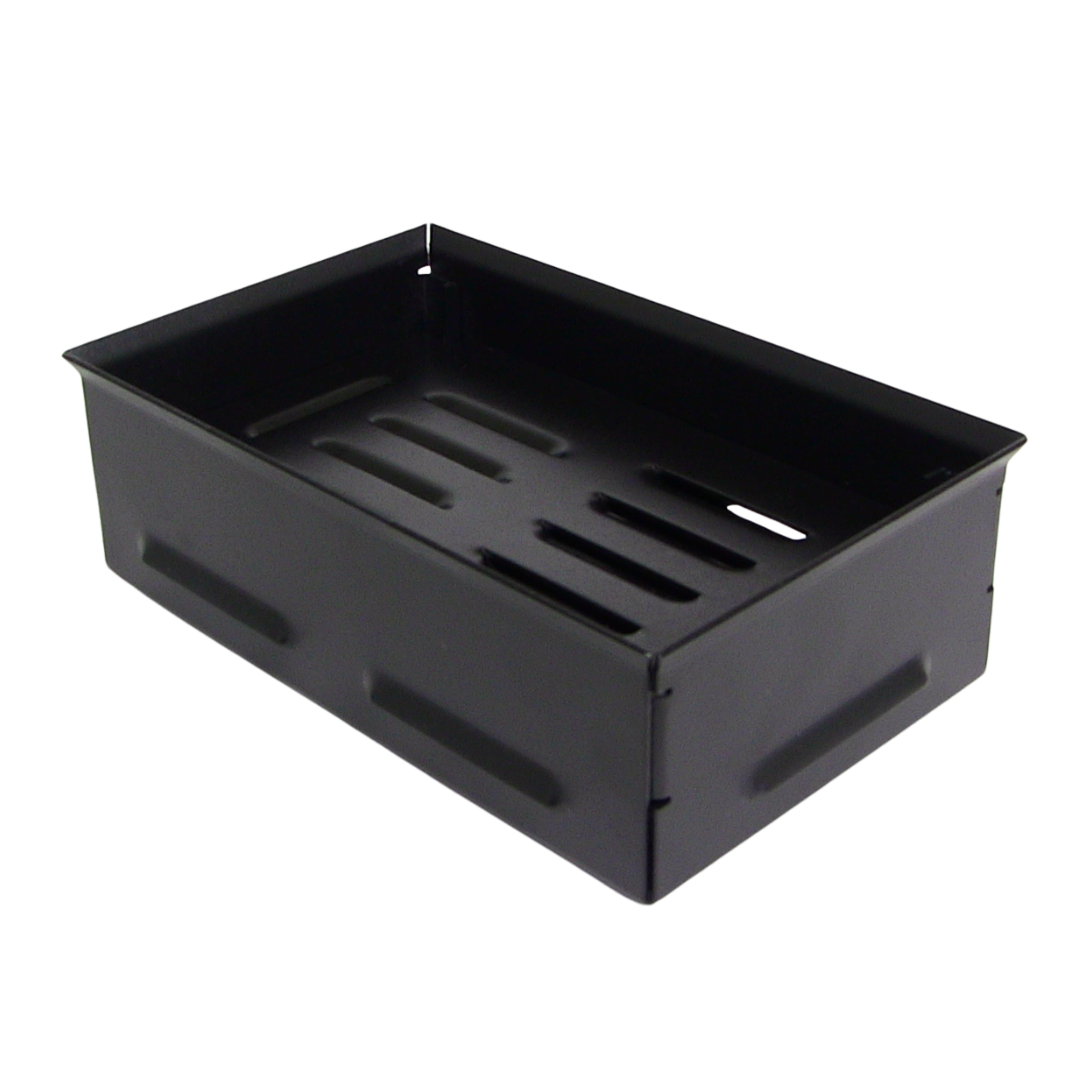

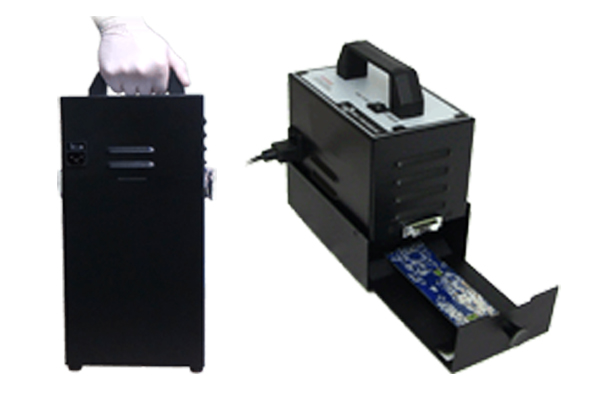

Headrest with drawer: The latched accessory box version of the PortaRay comes with a headrest that includes a drawer. This allows the headrest to function as a mini curing chamber for small parts, in addition to providing light shielding during idle periods.
PortaRay System Configurations
| Part # | Input [VAC] | Lamp Power [Watts] | Reflector Type/Area | UVA Intensity [mW/cm2 @ 3"] | Optional Acc. Box & Drawer Headrest |
|---|---|---|---|---|---|
| UV2270* | 120 | 400 | Parabolic (5x5") | 200 | Head Only, Closed Rest |
| UV2267* | 240 | 400 | Parabolic (5x5") | 200 | Head Only, Closed Rest |
| UV2272* | 120 | 400 | Focused (5x3") | 240 | Head Only, Closed Rest |
| UV2269 | 240 | 400 | Focused (5x3") | 240 | Head Only, Closed Rest |
| UV2274 | 120 | 400 | Parabolic (5x5") | 200 | w/ Accessory Box, Drawer Rest |
| UV2273 | 240 | 400 | Parabolic (5x5") | 200 | w/ Accessory Box, Drawer Rest |
| UV1197 | 120 | 400 | Focused (5x3") | 240 | w/ Accessory Box, Drawer Rest |
| UV1198 | 240 | 400 | Focused (5x3") | 240 | w/ Accessory Box, Drawer Rest |
| UV2265* | 120 | 600 | Parabolic (5x5") | 270 | Head Only, Closed Rest |
| UV2258* | 240 | 600 | Parabolic (5x5") | 270 | Head Only, Closed Rest |
| * Stocked configurations; all others are special order. Note: All systems include UVA lamp, UV protective glasses and gloves, power cord and manual. |
|||||
| Part No. | Item | Details |
|---|---|---|
| UV3103 | PortaRay Stand & Shield Assembly | Mounting & Shielding Station for PortaRay. Includes stand (UV0454), front shield (UV0455), rear shield (UV1094) & PortaRay mounting bracket (UV1729) |
| UV1729 | PortaRay Mounting Bracket Kit | Mounting bracket, flood bracket, knob, measurement tape & hardware (used to attach PortaRay to flood stand ) |
| UV0454 | Adjustable Height Flood Stand | Used with PortaRay & PortaRay mounting bracket (UV1729) for bench top curing |
| UV0455 | Wrap-around UV Shield | Provides basic UV shielding (used with UV0454) |
| UV1094 | Rear UV Shield | Supplemental rear protection for blocking low level backside UV light for applications where complete shielding is desirable (used with UV0454 & UV0455) |
| (Multiple) | Power cords | Multiple types available |
| UV4270 | PortaRay Carrying Case | 24 x 17 x 10” |
| UV1450 | Uvicure Plus II Integrating Radiometer | UVA, UVB or Visible ranges, 10–10,000mW/cm2 |
| UV1422 | UV Protective Gloves | Cotton Knit Work Gloves for UV light shielding |
| UV4783 | UV/IR Protective Safety Glasses | Sleek OTG (fit over prescription eyewear), 5.0 shade |
| UV02232 | UV/IR Protective Safety Glasses | Sport contour, 5.0 shade |
| UV01890 | UV Protective Face Shield | Lift-up face shield ideal for maximum UV/Visible light protection, w/ darker 6.0 shade |
| Replacement Lamps: | ||
| UV0320 | UVA Metal Halide Lamp | 400W medium pressure |
| UV0544 | UVB Enhanced Lamp | 400W medium pressure |
| UV0489 | Visible Metal Halide Lamp | 400W medium pressure, 420nm |
| UV0545 | Visible Metal Halide Lamp | 400W medium pressure, 460nm |
| UV0834 | UVA Metal Halide Lamp | 600W medium pressure |
| UV1884 | UVB Enhanced Lamp | 600W medium pressure |
| UV1074 | Visible Metal Halide Lamp | 600W medium pressure, 420nm |
PortaRay Custom Carrying Case
