ILT800 CureRight
Delivers unmatched flexibility and capability not found in any other system

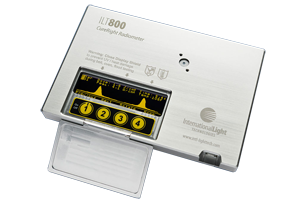

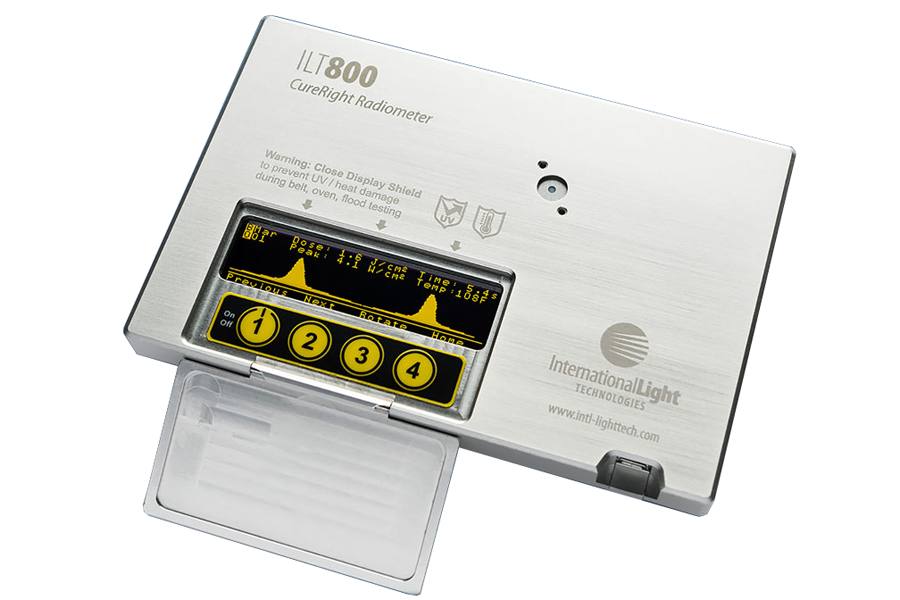

The ILT800 CureRight Radiometer is a feature-rich profiling UV radiometer that delivers unmatched flexibility and capability not found in any other system. The ILT800 meets a broad range of applications across a variety of light measurement needs. The system was designed with the varying needs of its users in mind and can be configured and customized to each unique environment.
The ILT800 CureRight Radiometer series is designed to measure and validate all types of UV curing methods and sources including conveyor, belt, oven, flood, area, spot, fiber optic, collimated beam, side cure, 180° curing, 3D printing, pulsed and traditional UV lamps and UV / VIS LEDs and light sources.
This UV data logger system outperforms the competitors with features such as profiling of current / previous / stored measurements, ability to monitor, measure, view and export the date, time, temperature, irradiance, dose, cal due date, model, serial number and battery status.

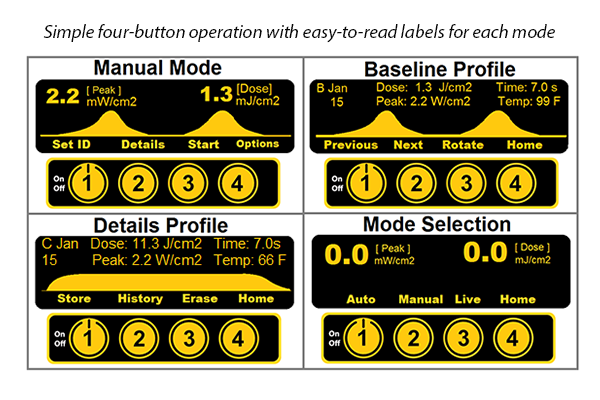

User programmable settings include minimum light level threshold, lamp-to-lamp measurement interval (delay), time to auto shutoff, and auto / manual / live measurement modes. The ILT800 CureRight Radiometer is the only radiometer with Device ID, which allows users to program up to 20 unique system / source information points to store and export baselines and historical data for all curing stations in one economically priced meter.
Details
- ISO17025
- Custom and OEM inquiries welcome
Benefits
- Largest measurement range, from 5mW/cm²–40W/cm²
- Effortless results, clear data, easily identifies the problem
- Measures pulsed and continuous sources
- Linear response; no range selection required
Features
- Profiling is standard
- 3000 samples per second, integration for up to 10 minutes, store / recall up to 1000 profiles
- Mapping: face horizontally, vertically, up or down
- Temperature measurement
- Low battery warning
- Made in USA
| Specifications | |
|---|---|
| Part # | UV4024 |
| Intensity Range | 4.5 decade (5 mW/cm2 to 40 W/cm2) |
| Readout | mW/cm2, mJ/cm2, W/cm2, J/cm2 & profile/graph, Date, Time, Temp. |
| Sensors | Linear, solid state GaAsp & SiC |
| Dimensions (L x W x H) | 102 x 152 x 12.7 mm |
| Display | 19 x 71 mm OLED |
| Power | Micro USB & rechargeable battery |
| Temp | 0–75 °C (internal case temp) |
| Input Optic | Cosine correction diffuser |
| Memory | 400,000 data points |
| System components | UV Logger with rechargeable battery and USB cable |
| Sampling Rate | 1000 readings/sec |
| Detectable Energy Range | .001–99 J/cm2 |
| Spectrum Options | |
|---|---|
| UV4024-UVA | 315–390 nm |
| UV4024-BAV | 275–475 nm |
| UV4024-UV | 250–400 nm |
| UV4024-CUV | 215–350 nm |
| UV4024-UVF | 275–450 nm (360–400 nm Flat) |
