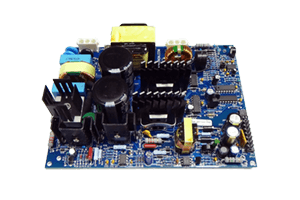

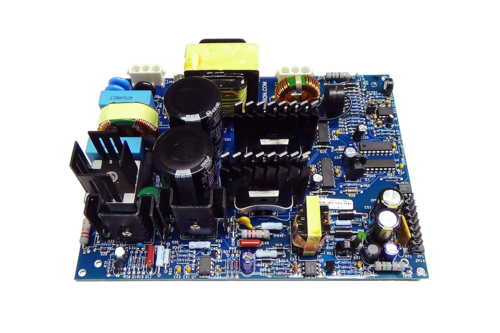

Full Featured Arc Lamp Power Supply
Switching power supply provides a constant power source for UV lamps
This full-featured arc lamp power supply’s switching power supply is a constant power source for a 400 / 600 / 800W UV halide or other types of ultraviolet emitting lamps. It features an auto-ranging AC input, eliminating the need to configure voltage selectors for international use, and a “standby” logic signal for reducing output power while the system is idle. The unit also contains an isolated 5 / 24V supply for powering system controllers, fans, shutters, etc.
Auto-range AC line input: The auto-ranging 100–120 ±10% / 200–240 ±10%AC line input makes the lamp power supply easy to use in any country, with no wiring changes or voltage select switching required.
Lamp power regulation: To maintain constant power, the system divides the desired output power by the actual UV arc lamp voltage. This provides the appropriate current reference for the lamp regulator to compensate for lamp and line voltage variations. The result is repeatable curing times as the lamp ages, when the lamp is replaced, or when the input voltage fluctuates.
Standby power mode: The unit has an external standby input for reducing UV arc lamp power to 1/2 for the 400W and 1/3 for the 600W. This can reduce excess heat and power consumption during idle, therefore increasing system reliability and efficiency and reducing ambient temperature rise.
| Full-Featured Arc Lamp Power Supply - Specifications | ||
|---|---|---|
| Part # | UV101 | UV880 |
| Lamp Power | 400W | 600W |
| Input Voltage | 100-120 ±10% / 200-240 ±10% VAC (Auto-ranging) | 100–120 ±10% / 200-240 ±10% VAC (Auto-ranging) |
| Input Current (max @ low line, 120VAC) | 7 Amps | 10 Amps |
| Input Current (max @ low line, 240VAC) | 3.5 Amps | 5 Amps |
| Source Input Frequency | 47 Hz–63 Hz | 47 Hz–63 Hz |
| Efficiency (Typical) | 93% | 93% |
Lamp Info
- Lamp Type: Mercury vapor or metal halide
- Lamp Power: 400 / 600W ± 10%; trim pot adjustable
- Output Volts: 140 ± 10%; function of lamp voltage
- Wave Shape (Current / Voltage): 45Hz Quasi Square
- Lamp Power Regulation: ± 1%
- Operation: Continuous mode
Low Voltage
- 24DC Line / Load Regulation: ± 10%; 40W max
- 5DC Line / Load Regulation: ± 2%; 10W max
Protection
- Inrush Current Limit
- Line Voltage Surge
- Short Circuit (Lamp, 5V and 24V outputs)
- Open Circuit Voltage
- Over Temperature
Environmental
- Operating Temperature: 0°C–+50°C
- Storage Temperature: 0°C–+70°C
- Humidity: 90% relative with no condensation
- EMI RFI-Conducted: FCC Class A
- EMI RFI-Conducted Optional: FCC Class B with external filter
Dimensions
- L x W x H: 7.35 x 5.5 x 2.25″
- Weight: 1.71 lbs.
| Part No. | Item | Description |
|---|---|---|
| UV0582 | UV Intensity Controller | Controller used as an accessory to the UV switching power supplies |
| UV1998 | Ignitor | High voltage lamp starter for UV floods |
| UV0320 | UVA Metal Halide Lamp | 400W medium pressure |
| UV0544 | UVB Enhanced Lamp | 400W medium pressure |
| UV0489 | Visible Metal Halide Lamp | 400W medium pressure, 420nm |
| UV0545 | Visible Metal Halide Lamp | 400W medium pressure, 460nm |
| UV0834 | UVA Metal Halide Lamp | 600W medium pressure |
| UV1884 | UVB Enhanced Lamp | 600W medium pressure |
| UV1074 | Visible Metal Halide Lamp | 600W medium pressure, 420nm |
