The UV Conveyor 40 Plus is a bench-top or stand-mounted UV light curing conveyor system designed for laboratory or high-volume production applications. The conveyor features a quiet variable speed motor with a velocity regulating drive that keeps the belt speed constant for varying loads.
The system can be configured with single or dual high intensity lamp heads, which can be removed and reconfigured as stand-mounted systems for increased versatility. The belt-to-lamp height can be easily adjusted from 1.2 to 6.7” for improved compatibility with varying part sizes. The standard conveyor comes with two SunRay lamp heads, and can also be used with our higher power SkyRay LED systems, or with additional sidecure PortaRays for applications requiring full UV coverage.
-

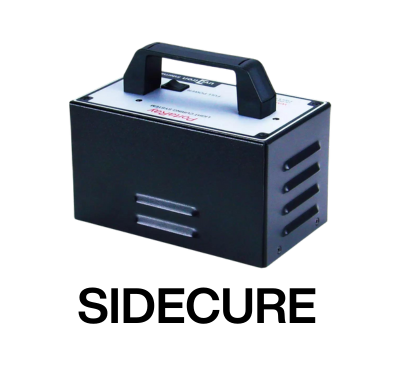

- UV Conveyor 40 Plus with sidecure – optional side-mounted PortaRay lamps provide full UV coverage.
-
- UV Conveyor 40 with SkyRays – Dual spectrum capable 800W LED SkyRay systems available for high intensity precision UV applications

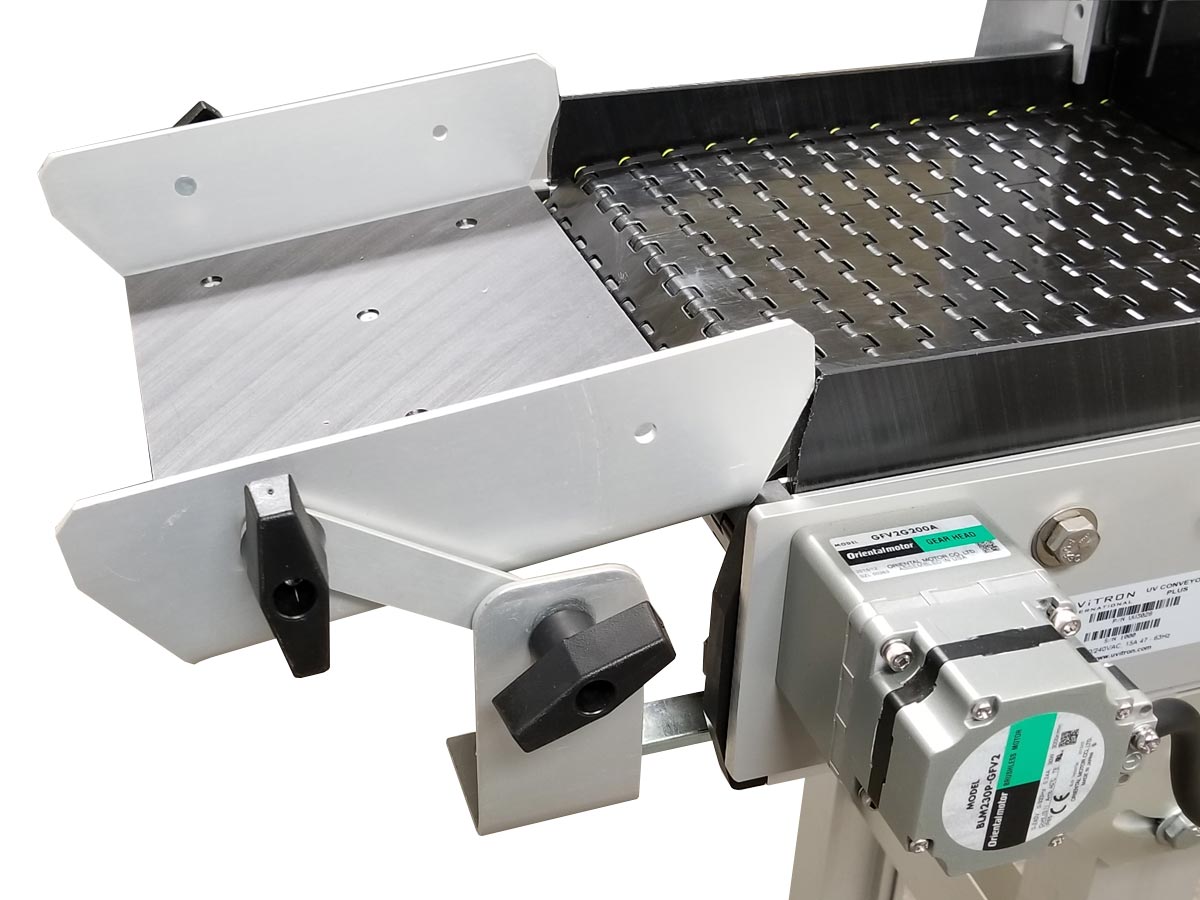

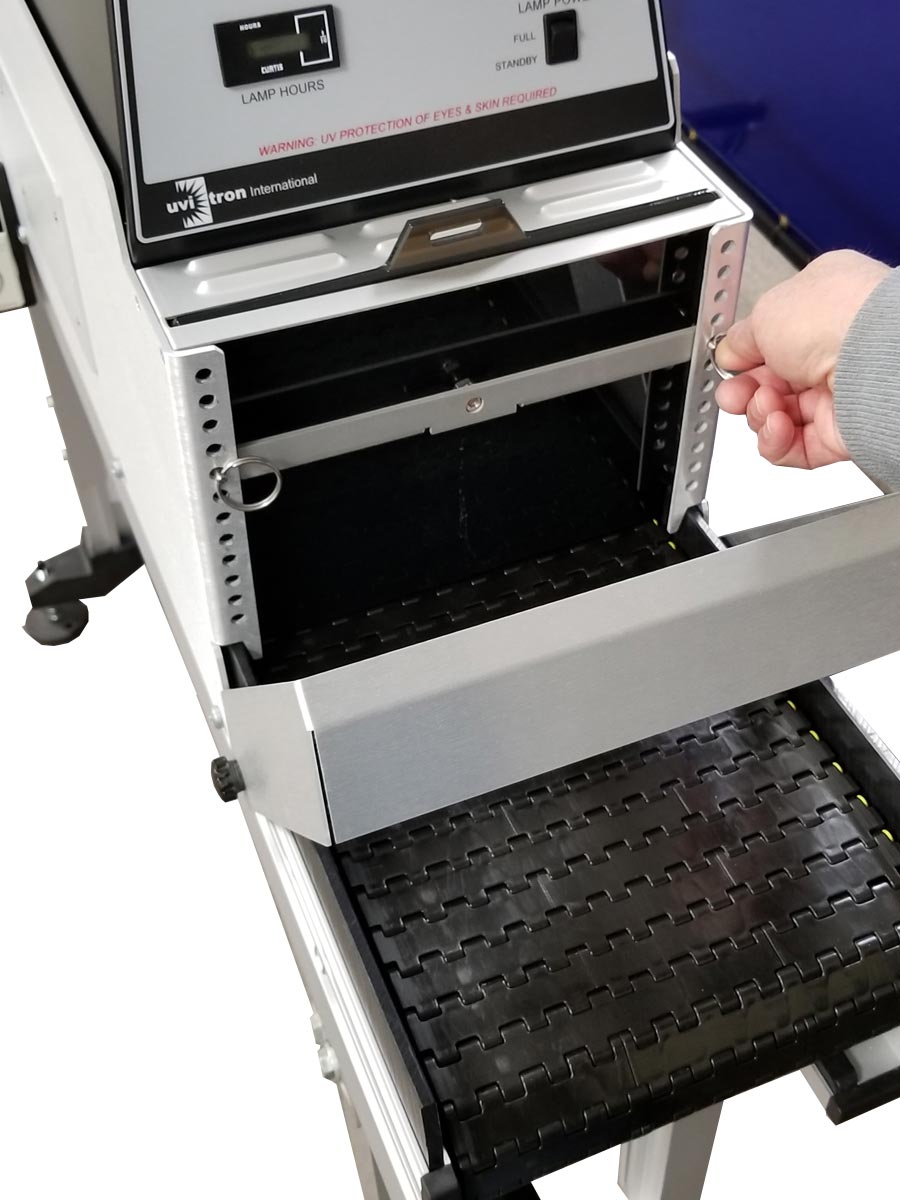

Adjustable lamp height and end chute: Foldaway end covers provide quick access to height adjustment pins, which provide perfectly repeatable settings of lamp head to belt distance. An adjustable position end chute guides accumulating cured parts as they exit the conveyor.

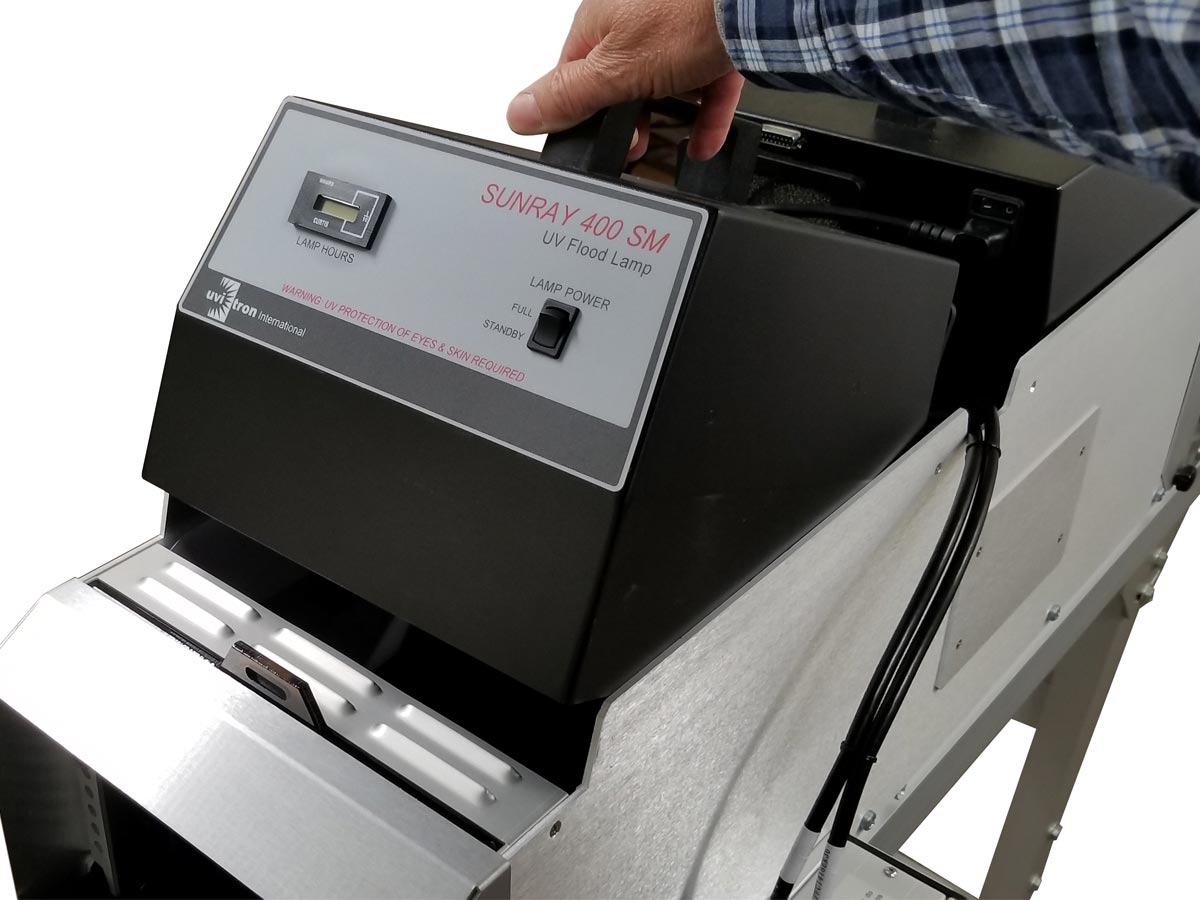

Removable lamp heads: The system’s dual lamp heads can be easily removed for bulb replacement and maintenance. They can also be moved quickly from the conveyor to optional low cost shielded mounting stands. This feature allows for offline engineering process testing, and maximum equipment utilization.
Dual spectrum capable: The UV Conveyor 40 Plus dual lamp heads offer the unique curing advantage of mixing any of its four available lamp spectrum types. For instance, the UV conveyor’s first lamp head can be fitted with a UVA type whose longer wavelengths penetrate more effectively, providing deeper UV curing. The second lamp can be a UVB lamp for sealing the surface, preventing oxygen from diffusing and causing surface tackiness. This optimizes adhesive reaction speed without the need for an expensive nitrogen purge or the delays of pulse curing.
Full UV shielding: The conveyor light chamber is totally enclosed, shielding the operator and others nearby from any light exposure during the UV curing process. The light chamber entrance and exit are protected by sliding tinted acrylic doors with extended hoods.

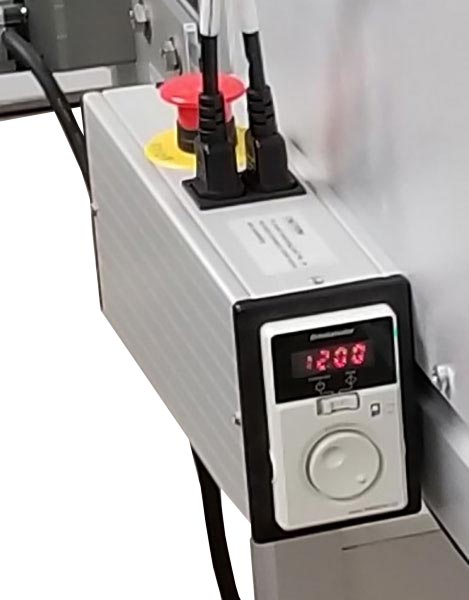

Digital speed readout & E-stop switch: A digital rate meter accurately displays the conveyor’s belt speed in feet per minute, allowing for repeatable curing time settings. An emergency stop switch allows quick and safe shutdown of conveyor and lamps.

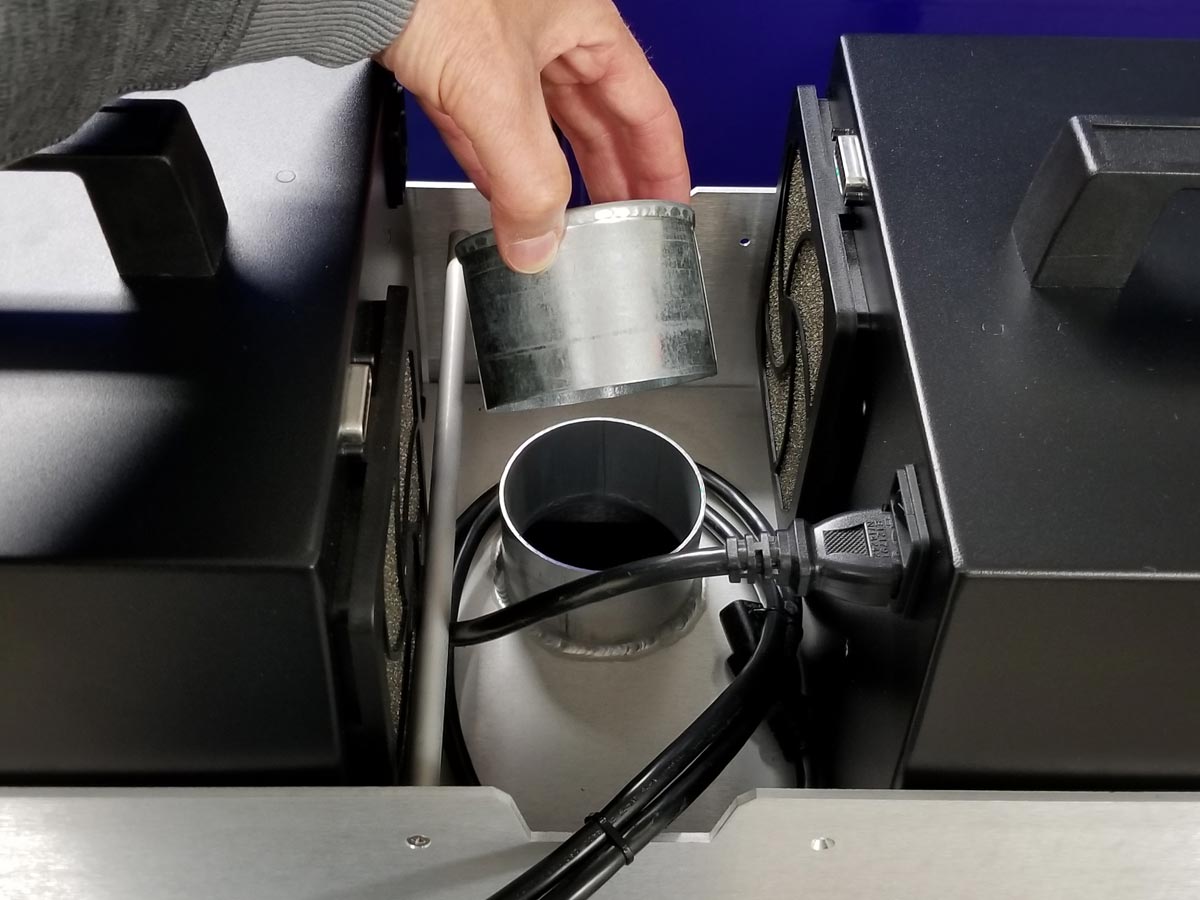

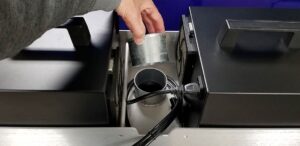

Exhaust port: The light chamber has a top-mounted 3″ diameter port for optional venting to facility exhaust systems.

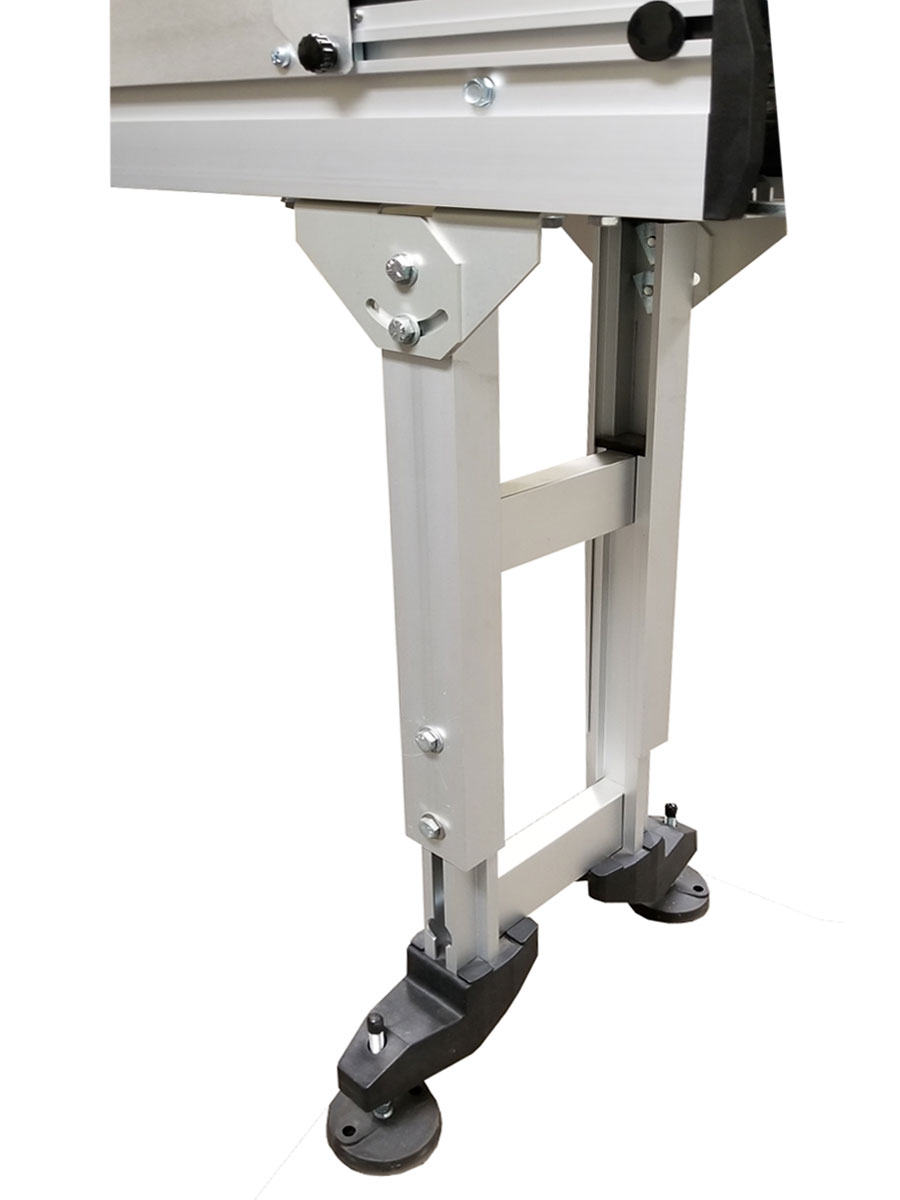

Optional mounting stands: The system may be configured with extruded aluminum height adjustable mounting stands. The stands have unique swivel support brackets that allow them to support inclined conveyors, as well as provide angular transitions between continuous conveyors.
Other options: The light chamber can be outfitted with various reflector and lamp spectrum options. Other conveyor lengths are available as special order. Many accessories are also available for configuring the conveyor system into an automated assembly center: Over-belt counter tops, under-belt storage bins, walk-thru gate sections, 90º-turn wheels, end-to-end or end-to-side belt transition plates, product end stops, half stops, guide rails, photoelectric sensors, convenience outlets, remote foot pedals, etc.

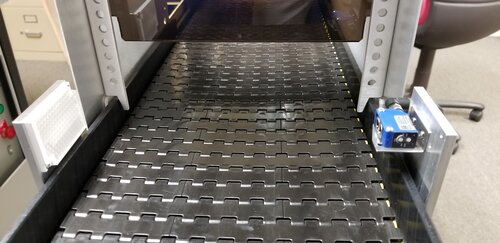

| UV Conveyor 40 Plus - Specs & Dimensions | |
|---|---|
| System Type: | Conveyor, variable speed |
| Part #: | UV3028–120M (120 VAC), UV3028–240M (240 VAC, required for dual SkyRay 800 or sidecure configurations) |
| Input Voltage: | 100–120 or 200–240 VAC ±10% ranges |
| Input Current (Max): | 20A at 120V, 15A at 240V |
| Curing Width: | 6" exposure width, 9" max part width |
| Belt L x W: | 54 x 9” |
| Belt Speed: | 0.5–25’ / min |
| Lamp Height, Adjustable: | 1.2–6.7”, 0.5” steps |
| Size: | 54 x 14 x 16” |
| Weight: | 63.2 lbs |
| Lamp Type | 2 SunRay 400 UVA (arc) | 2 SunRay 600 UVA (arc) | 2 SkyRay 800 365nm (LED) | 2 PortaRay 400 Sidecure UVA (arc) |
|---|---|---|---|---|
| Lamp Power | 400W | 600W | 800W | 400W |
| Irradiance (3” distance) | 115 mW/cm² | 175 mW/cm² | 1000 mW/cm² | 95 mW/cm² @ 5” Lamp base to belt center |
| Curing Energy (0.5–25’ / min) | 294–14,683 mJ/cm² | 447–22,344 mJ/cm² | 2600–116,000 mJ/cm² | 175–8,500 mJ/cm² (per side) |
| Exposure Time | 3.2–160 sec. | 3.2–160 sec. | 2.0–100 sec. | 2.0–100 sec. |
| Part No. | Item | Details |
|---|---|---|
| UV0886 | Conveyor Mounting Stands, Adjustable Height (set of two) | Extruded aluminum with swivel support brackets and adjustable leveler pads |
| UV4277 | Photoelectric Sensor Kit | Triggers SkyRay Lamps via Parts Feed |
| (Multiple) | Power cords | Multiple types available |
| UV1450 | Uvicure Plus II Integrating Radiometer (mid power) | UVA, UVB or Visible ranges: 10–1,000mW/cm2, UVC range: 1-100mW/cm2 |
| UV4006-XXX | LEDCure UV LED Integrating Radiometer | 365, 385, 395 or 405nm ranges: 0.4–40W/cm2 |
| UV0495 | UV/IR Protective Safety Glasses | OTG (fit over prescription eyewear), 3.0 shade |
| UV2231 | UV/IR Protective Safety Glasses | Sport contour, 3.0 shade |
| UV1889 | UV Protective Face Shield | Lift-up face shield ideal for maximum UV/Visible light protection, 4.0 shade |
| UV4268 | Stainless Steel Curing Tray | 7 x 9 x 1" (for small parts on belt) |
| Part No. | Item | Details |
|---|---|---|
| UV0899 | Replacement Chain Conveyor Belt | High temperature polypropylene |
| UV0320 | UVA Metal Halide Lamp | 400W medium pressure |
| UV0544 | UVB Enhanced Lamp | 400W medium pressure |
| UV0489 | Visible Metal Halide Lamp | 400W medium pressure, 420nm |
| UV0545 | Visible Metal Halide Lamp | 400W medium pressure, 460nm |
| UV0834 | UVA Metal Halide Lamp | 600W medium pressure |
| UV1884 | UVB Enhanced Lamp | 600W medium pressure |
| UV1074 | Visible Metal Halide Lamp | 600W medium pressure, 420nm |
| Part No. | Item | Details |
|---|---|---|
| UV0446 | 400W SunRay 400 Lamp Head, 120 / 240 VAC, 50 / 60Hz | Includes 400W UVA enhanced arc lamp, UV / IR protective glasses, power cord and manual (order 2 per system) |
| UV0830 | 600W SunRay 600 Lamp Head, 120 / 240 VAC, 50 / 60Hz | Includes 600W UVA enhanced arc lamp, UV / IR protective glasses, power cord and manual (order 2 per system) |
| UV3805 (365nm), UV3153 (385nm), UV3937 (395nm), UV3896 (405nm) | 800W SkyRay 800 | Includes UV / IR protective glasses, power cord and manual. Available with 365nm, 385nm, 395nm or 405nm LEDs. Includes UV / IR protective glasses, power cord and manual (order 2 per system) |
| UV2267 | 400W PortaRay 400 Lamp Head, 240 VAC, parabolic reflector 50 / 60Hz, used for side cure UV Conveyor 40 Plus (UV3028-240) | Includes 400W UVA enhanced arc lamp, UV / IR protective glasses, power cord and manual (order 2 per system) |
| Part No. | Item | Details |
|---|---|---|
| UV3028-120M | UV Conveyor 40 Plus, 120 VAC 50 / 60 Hz | Bench-top variable speed conveyor (lamp heads and mounting stands sold separately). Includes adjustable end chute, power cord and manual |
| UV3028-240M | UV Conveyor 40 Plus, 240 VAC 50 / 60 Hz | Bench-top variable speed conveyor (lamp heads and mounting stands sold separately). Includes adjustable end chute, power cord and manual. Note: 240 VAC, required for dual SkyRay 800 or sidecure configurations. |
Payment Information
Purchase Orders
To open a new customer account with us, please send the following information regarding your company:
- Company name
- Company contact
- “Bill To” address
- Telephone and fax numbers
- Three trade references
Please be sure to include the following information on your purchase requests to ensure quick and accurate processing and shipment of your order:
- Complete “Ship To” address, including postal code where applicable
- Required shipping method
Unless otherwise specified, all shipments will be sent via UPS.
New Customer Form | Credit Application
Fax & Email Orders
To place an order, send your signed purchase order and company information (see above) to the attention of our Sales Department by fax at 413.731.7767 or by email to orders@uvitron.com.
Phone Orders (U.S. Customers Only)
We are happy to process your product orders by phone at 413.731.7835. We accept MasterCard, Visa, Discover and American Express for phone order payments (see Credit Card Order information).
Credit Card Orders
In order for us to accurately and safely process your credit card orders, we request that you supply us with complete account, cardholder and shipping information. Please complete the following form and send it to us via email or fax, or be prepared to supply the information over the phone to one of our customer service representatives.
International Orders
We have extensive experience processing and fulfilling international as well as domestic orders. We have successfully shipped products to destinations around the globe.
To contact us from outside the United States, call 00.1.413.579.6406 or send us an email message at sales@uvitron.com
For first-time international orders, prepayment is required. Payments may be made by certified bank check or direct wiring of funds (this information must be provided at time of order).
Financing
We offer financing through CrestCapital. Learn more about financing the purchase of equipment by clicking here for instant payment quotes and/or to apply online.
Shopping Online
To order UV curing accessories online, visit our online store. We offer a variety of lamps, radiometers, light guides and other accessories for our flood and spot curing systems.
Return Policy
All product returns must be first authorized by our Customer Service department. A Uvitron service representative will issue a Return Material Authorization Number, which must be printed clearly on the top of the shipping carton and on the accompanying packing slip. Any unauthorized returns will be refused by our Receiving Department, so please call us first.
Returned products or demonstration units must be received in new condition, with no damage, dents, scratches or adhesive stains. Products should also be sent in the original packaging and shipping cartons to ensure proper protection during return transit. Some items may be subject to restocking fees. Account credits or refunds will be issued after returned equipment is received and inspected. Unfortunately, we cannot accept custom or non-stocked items returned for credit or refund.
To speak with a customer service representative, call 413.579.6406 or email customer_service@uvitron.com.
Product Files
Request Quote for UV Conveyor 40 Plus
Request a quote for the version of the UV Conveyor 40 Plus system that best fits your needs.
Below you can choose from the different available models, components and accessories for this system. You can select each item one at a time or begin with the Default Configuration as a basis, and build from there.
If you have any questions contact us directly.
System Type and Included Items
The Uvitron UV Conveyor 40 Plus is a bench-top or stand-mounted light curing conveyor system, designed for laboratory or high volume production applications that can be configured for the top down or side cure exposure with your choice of arc or LED lamp heads. The default UV Conveyor 40 Plus configuration comes with motor, speed controller, tilting end hoods, tinted acrylic sliding doors, adjustable end chute, AC power cord (USA standard) and UV Conveyor 40 Plus manual.
UV Conveyor 40 Plus
Conveyor system that can be configured with various dual top lamp head types for top down curing. See lamp head type selection below.
UV Conveyor 40 Plus with Sidecure
Capable of being configured with various dual top lamp head types for top down curing. This conveyor system also comes by default with two PortaRay 400 lamp heads for side curing. (Available only in 240VAC input voltage & without 600W lamps).
Choose AC Input Voltage
The system is available in 90–132VAC and 180–265VAC input voltage ranges that make it compatible for use worldwide.
120VAC Input
System configured for 120VAC input (90-132VAC range)
240VAC Input
System configured for 240VAC input (180-265VAC range)
Side Cure PortaRay Lamps
The side cure configuration includes two PortaRay 400W Lamps
PortaRay 400 Side Cure Lamps (2 req'd) - UV2267
Two 240VAC PortaRay 400 lamps with 5x5" parabolic reflectors included for top and side curing applications.
Choose Lamp Head Type
SunRay 400 broad spectrum arc type ...
SunRay 400 Lamp Heads (2 req'd) - UV0446-NL
The SunRay 400 is a compact, mid-power UV flood curing system that utilizes broad spectrum arc lamps and provides a good balance between temperature and higher intensity.
Or SunRay 600 broad spectrum arc type ...
SunRay 600 Lamp Heads (2 req'd) - UV0830-NL
The SunRay 600 is a compact, high-power UV flood curing system that utilizes broad spectrum arc lamps and provides maximum intensity for fast curing (not available with side cure lamps).
Or SkyRay narrow spectrum LED type
SkyRay 800 Lamp Heads (2 req'd)
The SkyRay 800 is a compact programmable LED flood curing system. (Available only in 240VAC; if selected, your input voltage option will revert to 240VAC by default)
Choose SunRay 400 Lamp Type
The SunRay is available with UVA, UVB & visible spectrum lamps, ensuring compatibility with adhesives and coatings from all manufacturers.
400W UVA lamp (2 req'd) - UV0320
400W UVA enhanced arc lamp for SunRay system
400W UVB lamp (2 req'd) - UV0544
400W UVB enhanced arc lamp for SunRay system
400W Visible (420nm) lamp (2 req'd) - UV0489
400W Visible enhanced arc lamp (420nm peak) for SunRay system
400W Visible (460nm) lamp (2 req'd) - UV0545
400W Visible enhanced arc lamp (460nm peak) for SunRay system
Choose SunRay 600 Lamp Type
600W UVA lamp (2 req'd) - UV0834
600W UVA enhanced arc lamp for SunRay system
600W UVB lamp (2 req'd) - UV1884
600W UVB enhanced arc lamp with shortwave output for SunRay system
600W Visible (420nm) lamp (2 req'd) - UV1074
600W Visible enhanced arc lamp (420nm peak) for SunRay system
Choose SkyRay LED Type
365nm LEDs - UV3805
SkyRay 365nm 800W UV LED curing system
385nm LEDs - UV3153
SkyRay 385nm 800W UV LED curing system
395nm LEDs - UV3937
SkyRay 395nm 800W UV LED curing system
405nm LEDs - UV3896
SkyRay 405nm 800W UV LED curing system

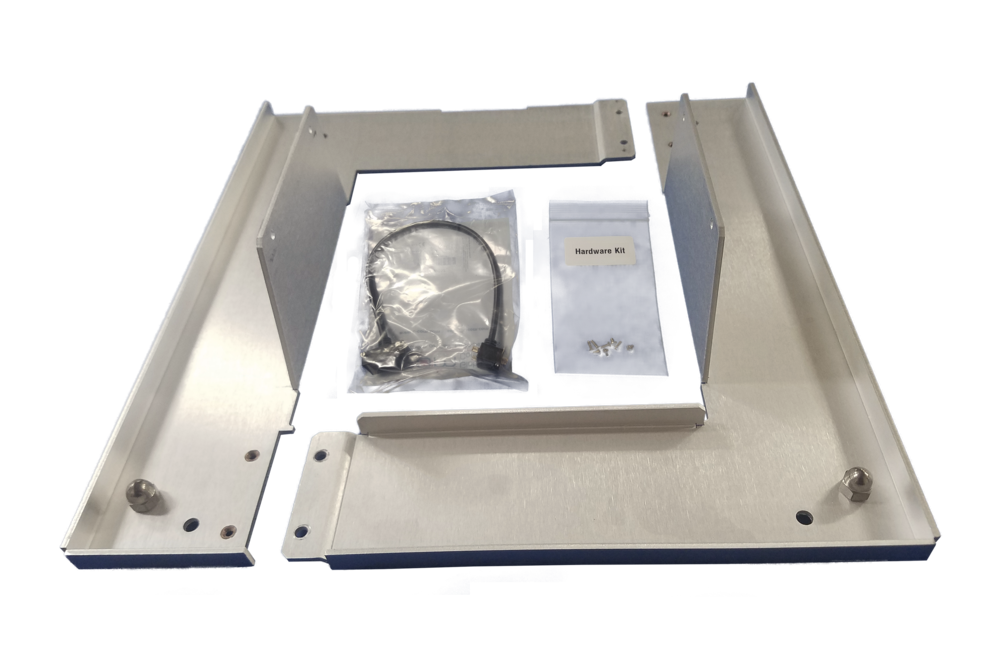

SkyRay Mounting Brackets for UV Conveyor 40 Plus (2 Per Lamp Head)
